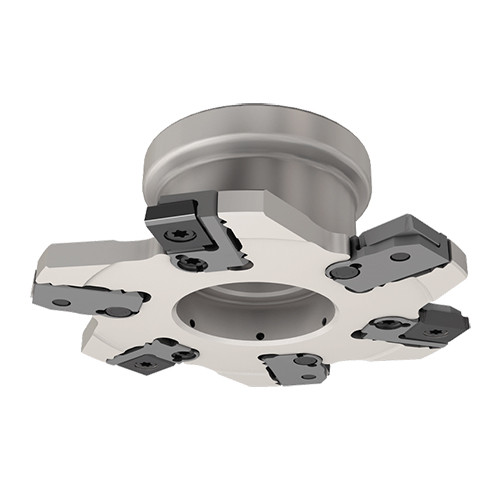

FDN D125-0608-32R-CALN12
切削宽度可调式三面刃槽铣刀，夹持铣刀片 LNET 12，切槽宽度范围为 6.0-10.5 mm。窄槽兼高精度切槽加工性能使得其能用于轴承盖这类零件的切槽加工。
Price: Log in For Price
产品规格

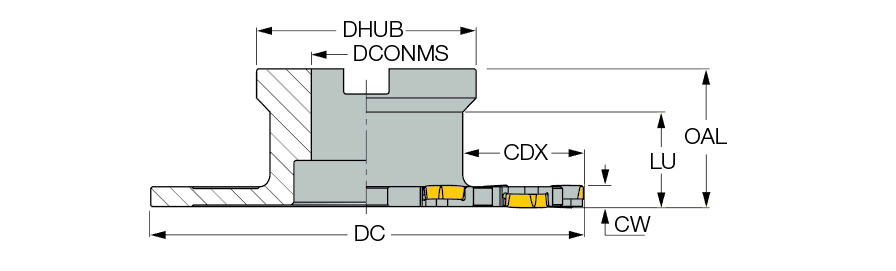

| Cutting Diameter (DC) | 125 mm | Usable Length (LU) | 30.2 mm |
| Cutting Item Count (CICT) | 8 | Master Insert Identification (MIID) | LNET 123504-TN |
| Peripheral Effective Cutting Edge Count (ZEFP) | 4 | 应用 | | 侧向开槽 | 底部方肩铣 | 方肩铣 | 槽铣加工 | |
| Cutting Depth Maximum (CDX) | 34 mm | Tool Type | Double-sided slotting cutters |
| Hub Diameter (DHUB) | 65 mm | 测量方式 | Metric |
| Cutting Width Maximum (CWX) | 8.2 mm | 刀体材质 | Steel |
| Cutting Width Minimum (CWN) | 6 mm | 单位 | M |
产品特性
| 系列描述 | 切削宽度可调式三面刃槽铣刀，夹持铣刀片 LNET 12，切槽宽度范围为 6.0-10.5 mm。窄槽兼高精度切槽加工性能使得其能用于轴承盖这类零件的切槽加工。 | 系列名称 | FDN-CALN12 |
| 备注 | For adaptation, click on More Info. For cartridges, click on More Info. | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
2.8770
名字
Disc w/Hole Indexable Slotting Cutters
系列名称
FDN-CALN12
品牌
Iscar
