产品规格

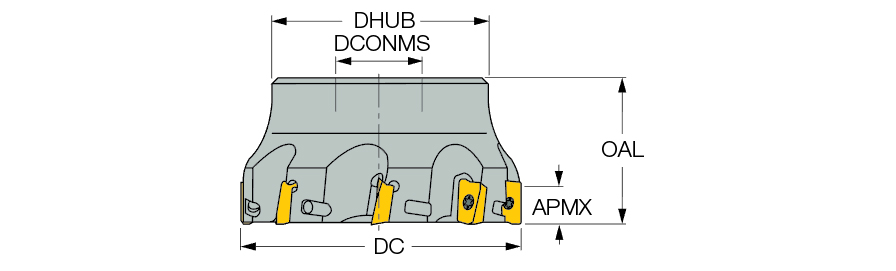

| Cutting Diameter (DC/DCX) | 63 mm | Coolant Supply Property (CSP) | External |
| Cutting Diameter (DC) | 63 mm | 刀体材质 | Steel |
| Cutting Diameter Maximum (DCX) | 63 mm | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 14.3 mm | 应用 | | 坡走铣 | 方肩铣 | 槽铣加工 | 沉孔铣削 | 面铣 | |
| Connection Diameter Machine Side (DCONMS) | 22 mm | 测量方式 | Metric |
| Overall Length (OAL) | 39.74 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Hub Diameter (DHUB) | 59.2 mm | Tool Type | 90° Facemills |
| Arbor Style | A | 单位 | M |
| Master Insert Identification (MIID) | ADKT 1505PDTR |
产品特性

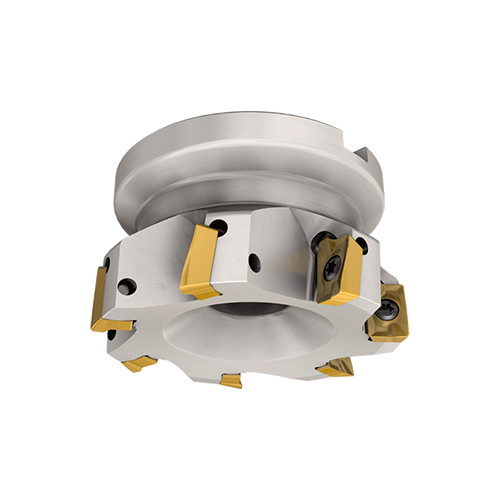

| 系列描述 | HELI2000系列, 90° 主偏角面铣刀夹持铣刀片 HM90 ADKT 1505... | 系列名称 | HM90 F90A-15 |
| 备注 | For adaptation, click on More Info Thinner insert ADM. 1503.. mounted on TSP-15R seat | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
0.7260
名字
Indexable Face Mills
系列名称
HM90 F90A-15
品牌
Iscar
