产品规格

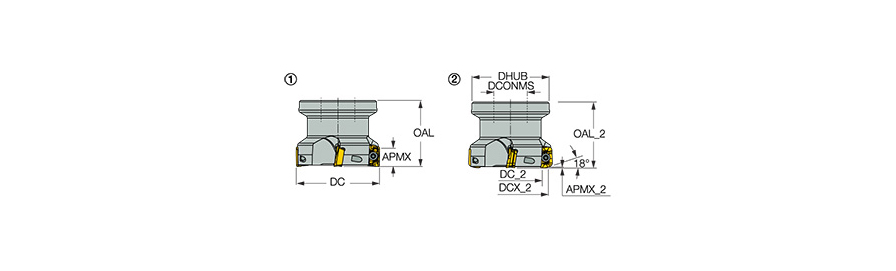

| Cutting Diameter (DC/DCX) | 6″ | Master Insert Identification (MIID) | ADKT 1505PDTR |
| Cutting Diameter (DC) | 6″ | Coolant Supply Property (CSP) | External |
| Cutting Diameter Maximum (DCX) | 6″ | 刀体材质 | Steel |
| Cutting Item Count (CICT) | 8 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.56″ | 应用 | | 坡走铣 | 大进给铣削 | 方肩铣 | 槽铣加工 | 沉孔铣削 | 面铣 | |
| Connection Diameter Machine Side (DCONMS) | 2″ | 测量方式 | Inch |
| Overall Length (OAL) | 2.37″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Hub Diameter (DHUB) | 4.13″ | Tool Type | 90° Facemills |
| Arbor Style | B | 单位 | I |
产品特性

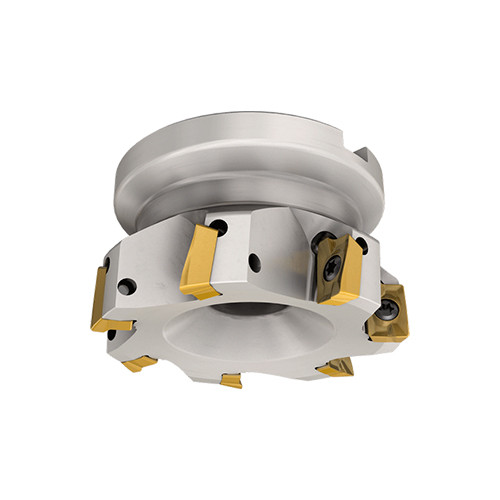

| 系列描述 | HELI2000, 90° face mills carrying HM90 ADKT 1505... inserts. | 系列名称 | HM90 F90A-15 |
| 备注 | For adaptation, click on More Info Thinner insert ADM. 1503.. mounted on TSP-15R seat | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
7.9366
名字
Indexable Face Mills
系列名称
HM90 F90A-15
品牌
Iscar
