产品规格

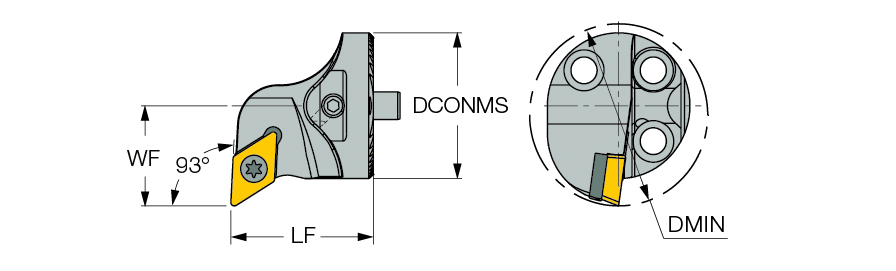

| Connection Diameter Machine Side (DCONMS) | 40 mm | 应用 | | Int. 55° Diamond 93 95° Approac | |
| Functional Length (LF) | 32 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Functional Width (WF) | 27 mm | Rake Angle Radial (GAMF) | 0 Degrees |
| Master Insert Identification (MIID) | DCMT 3-2-14 | 刀体材质 | Steel |
| Minimum Bore Diameter (DMIN) | 50 mm | 测量方式 | Metric |
| Cutting Direction (HAND) | Right Hand | 单位 | M |
| Coolant Supply Property (CSP) | Coolant Thru |
产品特性

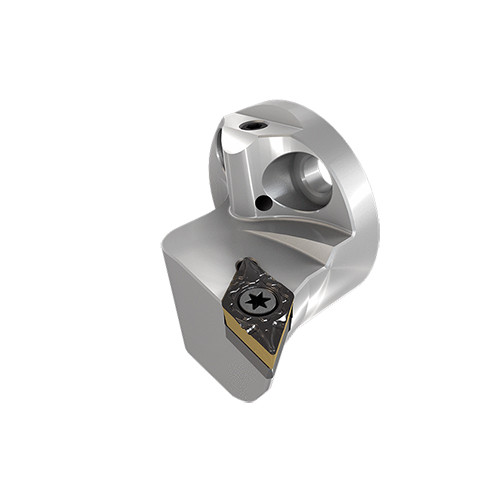

| 系列描述 | Interchangeable boring heads carrying 55° rhombic inserts with 7° clearance. | 系列名称 | AVC-SDUCR/L |
| COO | China | 品牌 | Iscar |
Shipping Info
包装重量
0.2020
名字
Indexable Internal Turning Tools
系列名称
AVC-SDUCR/L
品牌
Iscar
