产品规格

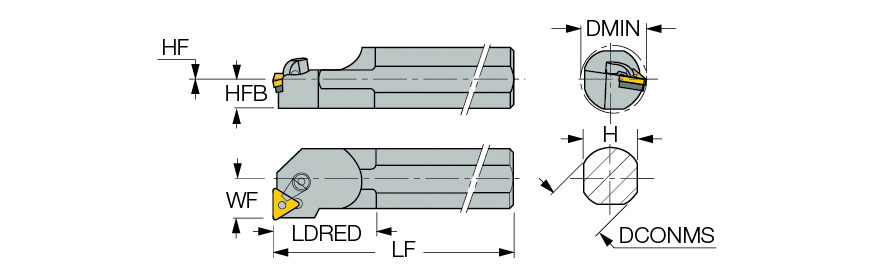

| Connection Diameter Machine Side (DCONMS) | 1″ | 应用 | | Int. 60° Triangle 91° Approach | |
| Overall Length (OAL) | 10″ | Rake Angle Axial (GAMP) | -5 Degrees |
| Functional Width (WF) | 0.64″ | Rake Angle Radial (GAMF) | -12 Degrees |
| Master Insert Identification (MIID) | TN..32.. | Tool Type | Internal Indexble -Turn Tool |
| Minimum Bore Diameter (DMIN) | 1.28″ | 刀体材质 | Steel |
| Cutting Direction (HAND) | Right Hand | 测量方式 | Inch |
| Coolant Supply Property (CSP) | Coolant Thru | 单位 | I |
产品特性
| 系列描述 | Comlock boring bars for negative triangular inserts. | 系列名称 | A-MTFNR |
| COO | USA | 品牌 | Iscar |
Shipping Info
包装重量
2.0701
名字

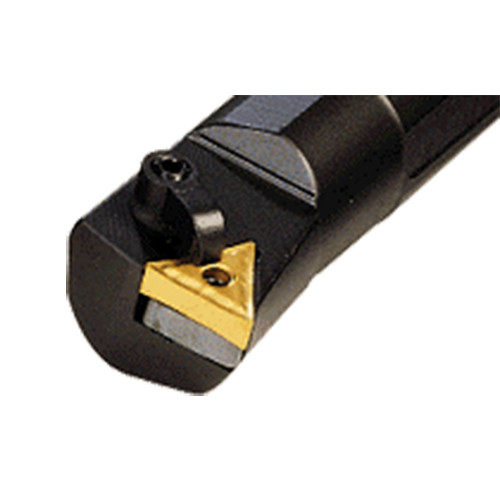

Indexable Internal Turning Tools
系列名称
A-MTFNR
品牌
Iscar
