产品规格
| Connection Diameter Machine Side (DCONMS) | 32 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Functional Length (LF) | 250 mm | 应用 | | Int. 80° Diamond 95° Approach | |
| Overall Length (OAL) | 250 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Reduced Body Diameter Length (LDRED) | 51 mm | Rake Angle Radial (GAMF) | -13 Degrees |
| Shank Height (H) | 29 mm | Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 21 mm | 刀体材质 | Steel |
| Master Insert Identification (MIID) | CNMX 1207, CNMG 1204 | 测量方式 | Metric |
| Minimum Bore Diameter (DMIN) | 54 mm | 单位 | M |
| Cutting Direction (HAND) | Left Hand |
产品特性

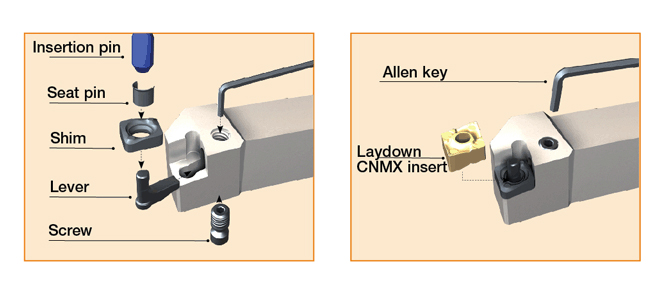

| 系列描述 | Lever lock boring bars carrying negative CNMX/CNMG 80° rhombic inserts, for heavy internal turning applications. | 系列名称 | A/S-PCLNR/L-X/G |
| COO | Israel | 品牌 | Iscar |
Shipping Info
包装重量
1.3910
名字
Indexable Internal Turning Tools
系列名称
A/S-PCLNR/L-X/G
品牌
Iscar
