产品规格

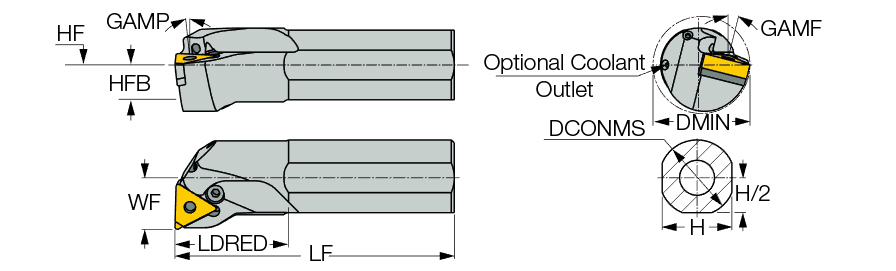

| Connection Diameter Machine Side (DCONMS) | 25 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 250 mm | 应用 | | Int. 60° Triangle 91° Approach | |
| Reduced Body Diameter Length (LDRED) | 37.5 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Height (H) | 23 mm | Rake Angle Radial (GAMF) | -14 Degrees |
| Functional Width (WF) | 17 mm | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | TNMX 1606, TNMG 1604 | 刀体材质 | Steel |
| Minimum Bore Diameter (DMIN) | 32 mm | 测量方式 | Metric |
| Cutting Direction (HAND) | Right Hand | 单位 | M |
产品特性
| 系列描述 | 91° lead angle lever lock boring bars carrying negative TNMX or TNMG triangular inserts. | 系列名称 | A-PTFNR/L-X/G |
| 备注 | Use TTX 3 seat for TNMX 1606.. inserts and TTN 3 seat for TNMG 1604.. inserts | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
0.7900
名字
Indexable Internal Turning Tools
系列名称
A-PTFNR/L-X/G
品牌
Iscar
