A-PTFNR 10-3G
91° lead angle lever lock boring bars carrying negative TNMX or TNMG triangular inserts.
Price: Log in For Price
产品规格

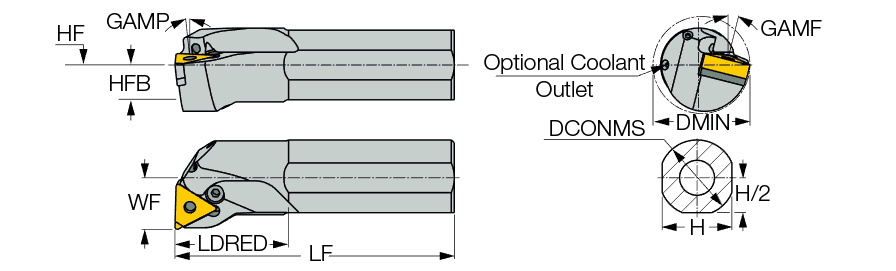

| Connection Diameter Machine Side (DCONMS) | 0.63″ | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 6″ | 应用 | | Int. 60° Triangle 91° Approach | |
| Reduced Body Diameter Length (LDRED) | 1.1″ | Rake Angle Axial (GAMP) | -12 Degrees |
| Shank Height (H) | 0.6″ | Rake Angle Radial (GAMF) | -16 Degrees |
| Functional Width (WF) | 0.4″ | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | TNMG 33. | 刀体材质 | Steel |
| Minimum Bore Diameter (DMIN) | 0.78″ | 测量方式 | Inch |
| Cutting Direction (HAND) | Right Hand | 单位 | I |
产品特性
| 系列描述 | 91° lead angle lever lock boring bars carrying negative TNMX or TNMG triangular inserts. | 系列名称 | A-PTFNR/L-X/G |
| 备注 | Use TTX 3 seat for TNMX 34. inserts and TTN 3 seat for TNMG 33. inserts | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
0.4233
名字
Indexable Internal Turning Tools
系列名称
A-PTFNR/L-X/G
品牌
Iscar
