S40U PTFNR-16

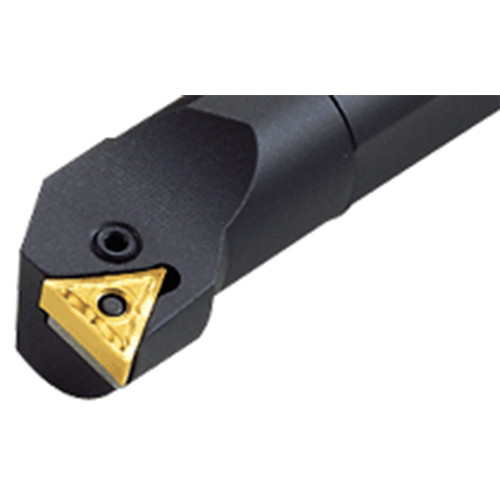

91° lead angle lever lock boring bars carrying negative triangular inserts.
Price: Log in For Price
产品规格

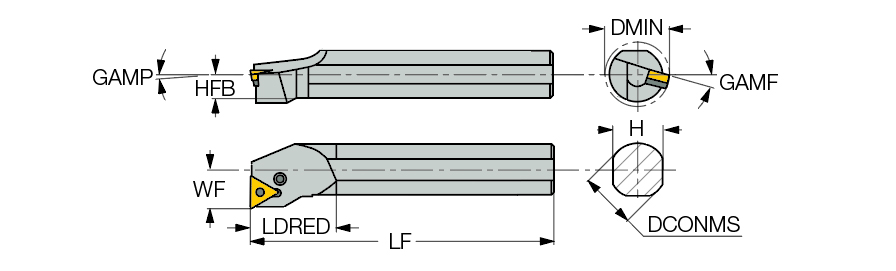

| Connection Diameter Machine Side (DCONMS) | 40 mm | 应用 | | Int. 60° Triangle 91° Approach | |
| Overall Length (OAL) | 350 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Reduced Body Diameter Length (LDRED) | 30 mm | Rake Angle Radial (GAMF) | -10 Degrees |
| Shank Height (H) | 36 mm | Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 27 mm | 刀体材质 | Steel |
| Master Insert Identification (MIID) | TNMG 1604 | 测量方式 | Metric |
| Minimum Bore Diameter (DMIN) | 49 mm | 单位 | M |
| Cutting Direction (HAND) | Right Hand |
产品特性
| 系列描述 | 91° lead angle lever lock boring bars carrying negative triangular inserts. | 系列名称 | S-PTFNR/L |
| COO | Israel | 品牌 | Iscar |
Shipping Info
包装重量
3.2720
名字
Indexable Internal Turning Tools
系列名称
S-PTFNR/L
品牌
Iscar
