A-PCLNR 20-4X
Lever lock boring bars for negative HELITURNLD CNMX inserts. Used for heavy internal turning applications.
Price: Log in For Price
产品规格

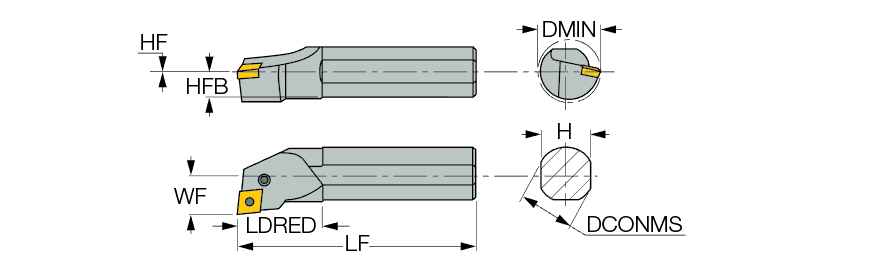

| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | 应用 | | Int. 80° Diamond 95° Approach | |
| Overall Length (OAL) | 12″ | Rake Angle Axial (GAMP) | -6 Degrees |
| Reduced Body Diameter Length (LDRED) | 2″ | Rake Angle Radial (GAMF) | -13 Degrees |
| Shank Height (H) | 1.14″ | Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 0.76″ | 刀体材质 | Steel |
| Master Insert Identification (MIID) | CNMX 45. CNMG 43. | 测量方式 | Inch |
| Minimum Bore Diameter (DMIN) | 2.13″ | 单位 | I |
| Cutting Direction (HAND) | Right Hand |
产品特性
| 系列描述 | Lever lock boring bars for negative HELITURNLD CNMX inserts. Used for heavy internal turning applications. | 系列名称 | A-PCLNR/L-X/G |
| COO | Israel | 品牌 | Iscar |
Shipping Info
包装重量
3.5516
名字
Indexable Internal Turning Tools
系列名称
A-PCLNR/L-X/G
品牌
Iscar
