A-SCLCR 6-2

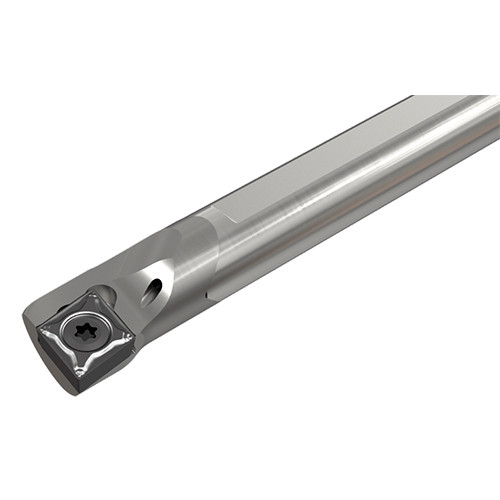

Screw lock boring bars for 80° rhombic inserts with 7° clearance
Price: Log in For Price
产品规格

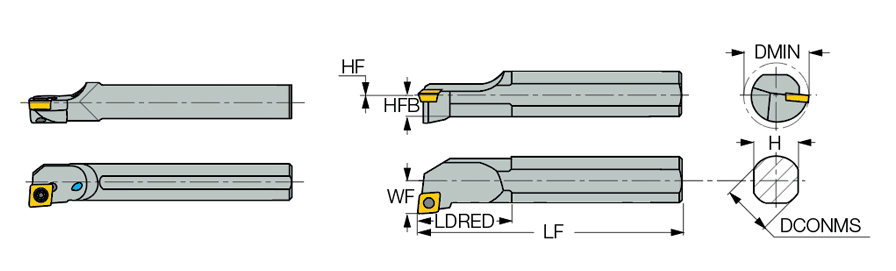

| Connection Diameter Machine Side (DCONMS) | 3/8″ | 应用 | | Int. 80° Diamond 95° Approach | |
| Overall Length (OAL) | 5″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Reduced Body Diameter Length (LDRED) | 3/4″ | Rake Angle Radial (GAMF) | -9 Degrees |
| Shank Height (H) | 0.35″ | Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 0.281″ | 刀体材质 | Steel |
| Minimum Bore Diameter (DMIN) | 1/2″ | 测量方式 | Inch |
| Cutting Direction (HAND) | Right Hand | 单位 | I |
| Coolant Supply Property (CSP) | Coolant Thru |
产品特性
| 系列描述 | Screw lock boring bars for 80° rhombic inserts with 7° clearance | 系列名称 | A/E/S-SCLCR/L |
| 备注 | S - steel shank, A - steel shank with coolant hole, E - carbide shank with coolant hole | 品牌 | Iscar |
| COO | Japan |
Shipping Info
包装重量
0.1896
名字
Indexable Internal Turning Tools
系列名称
A/E/S-SCLCR/L
品牌
Iscar
