产品规格

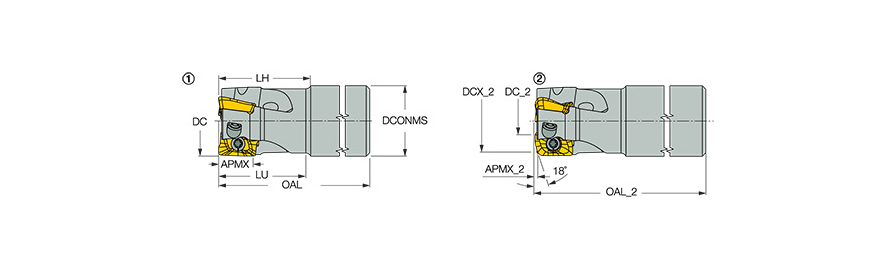

| Cutting Diameter (DC/DCX) | 0.44″ | Functional Length (LF) | 2.296″ |
| Cutting Diameter (DC) | 0.44″ | Tool Type | 90° indexable endmills |
| Cutting Item Count (CICT) | 1 | Usable Length (LU) | 1/2″ |
| Depth of Cut Maximum (APMX) | 0.39″ | Flute Count (NOF) | 1 |
| Overall Length (OAL) | 3-1/4″ | Coolant Supply Property (CSP) | Coolant Thru |
| 柄部形式 | Weldon | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 5 Degrees | Cutting Direction (HAND) | Right Hand |
| 应用 | | 坡走铣 | 大进给铣削 | 方肩铣 | 槽铣加工 | 沉孔铣削 | 螺旋插补铣 | 面铣 | | 测量方式 | Inch |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | 刀体材质 | Steel |
| Master Insert Identification (MIID) | APKT 1003PDR-HM | Connection Code Machine Side (CCMS) | Weldon |
| Head Length (LH) | 3/4″ | 单位 | I |
产品特性
| 系列描述 | 立铣刀，夹持铣刀片HM90 AP.. 1003… | 系列名称 | HM90 E90A-10 |
| 备注 | For adaptation, click on More Info Thinner insert ADM. 1503.. mounted on TSP-15R seat | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
1.9158
名字
Indexable End Mills
系列名称
HM90 E90A-10
品牌
Iscar
