产品规格
| Cutting Diameter (DC/DCX) | 1-1/2″ | Functional Length (LF) | 9.84″ |
| Cutting Diameter (DC) | 1-1/2″ | Tool Type | 90° indexable endmills |
| Cutting Item Count (CICT) | 3 | Usable Length (LU) | 1.89″ |
| Depth of Cut Maximum (APMX) | 0.56″ | Flute Count (NOF) | 3 |
| Overall Length (OAL) | 9.84″ | Coolant Supply Property (CSP) | External |
| 柄部形式 | Round | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 4 Degrees | Cutting Direction (HAND) | Right Hand |
| 应用 | | 坡走铣 | 方肩铣 | 槽铣加工 | 沉孔铣削 | 螺旋插补铣 | 面铣 | | 测量方式 | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | 刀体材质 | Steel |

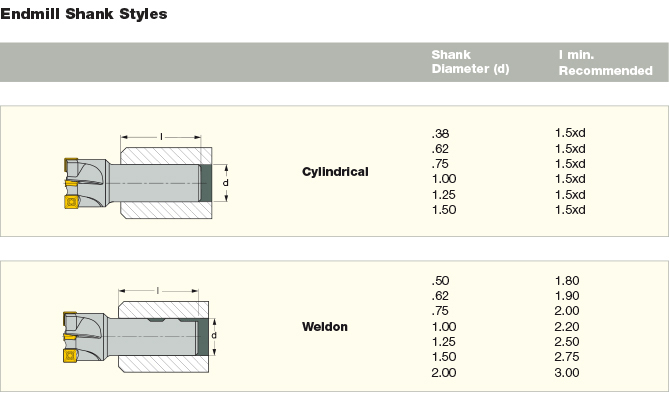

| Master Insert Identification (MIID) | ADKT 1505PDTR | Connection Code Machine Side (CCMS) | Cylindrical |
| Head Length (LH) | 1.97″ | 单位 | I |
产品特性
| 系列描述 | 90°主偏角立铣刀，夹持铣刀片HM90 ADKT-1505… | 系列名称 | HM90 E90AD-15 |
| 备注 | For adaptation, click on More Info Thinner insert ADM. 1503.. mounted on TSP-15R seat | 品牌 | Iscar |
| COO | Germany |
Shipping Info
包装重量
5.0530
名字
Indexable End Mills
系列名称
HM90 E90AD-15
品牌
Iscar
