产品规格

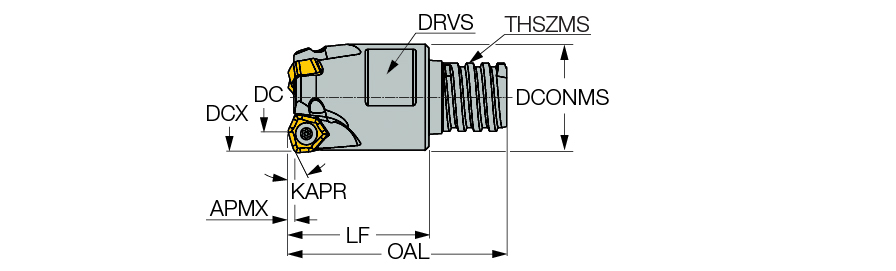

| Cutting Diameter (DC/DCX) | 12.6 mm | Drive Size (DRVS) | 15 mm |
| Cutting Diameter (DC) | 12.6 mm | Flute Count (NOF) | 3 |
| Cutting Item Count (CICT) | 3 | Torque (TQ) | 0.9 Nxm |
| Depth of Cut Maximum (APMX) | 0.8 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 38.8 mm | Tool Cutting Edge Angle (KAPR) | 17 Degrees |
| Ramping Angle Maximum (RMPX) | 4.8 Degrees | Cutting Direction (HAND) | Right Hand |
| 应用 | | 仿形铣 | 坡走铣 | 大进给铣削 | 插铣 | 插铣 & 开凹槽 | 螺旋插补铣 | 面铣 | | 测量方式 | Metric |
| Connection Diameter Machine Side (DCONMS) | 18.8 mm | 刀体材质 | Steel |
| Master Insert Identification (MIID) | H600 WXCU 040310HP | Connection Code Machine Side (CCMS) | MultiMaster |
| Functional Length (LF) | 25 mm | Cutting Diameter Maximum (DCX) | 20 mm |
| Tool Type | Fast Feed Endmill | 单位 | M |
| Connection Thread Nominal Size Machine Side (THSZMS) | T12 |
产品特性

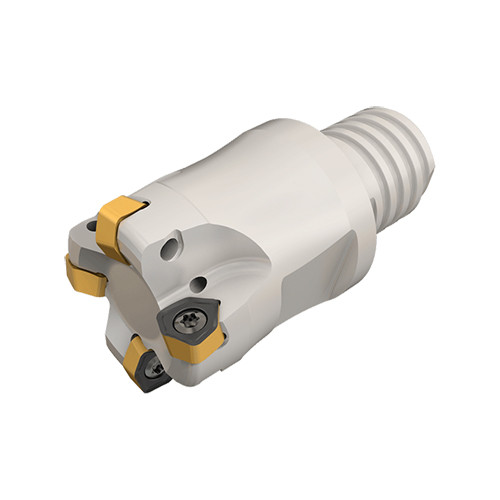

| 系列描述 | HELIDO UPFEED，变形金刚（MULTI-MASTER）模块螺纹连接式大进给立铣刀头，夹持带6个切削刃的双面铣刀片 | 系列名称 | FF EWX-MM |

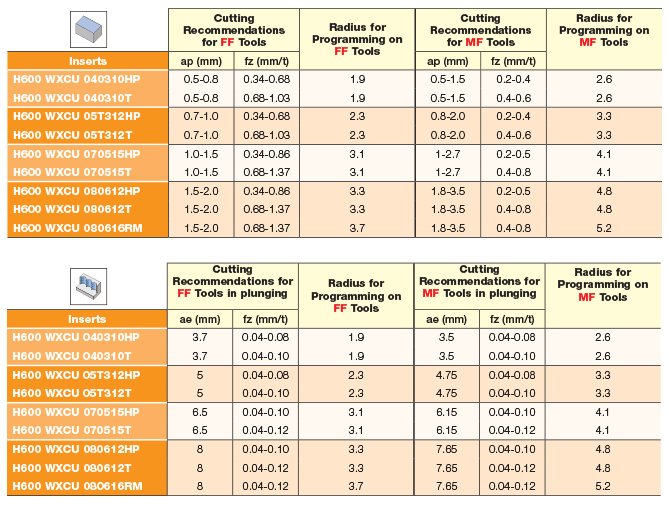

| 备注 | For machining recommendations, radius for programming and adaptation click on More Info Do not apply lubricant to the MULTI-MASTER threaded connection To generate a straight surface without cusps, the width of cut must not exceed DC | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
0.1060
名字
Indexable End Mills
系列名称
FF EWX-MM
品牌
Iscar
