产品规格

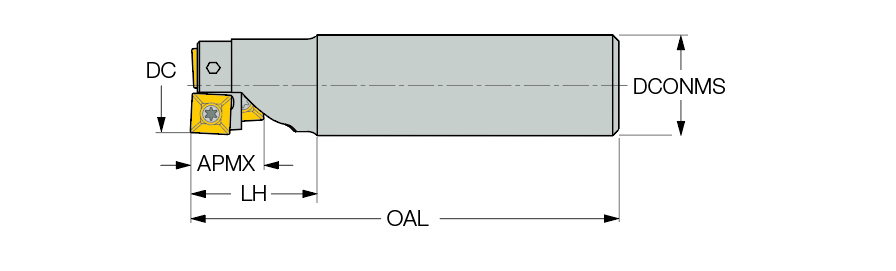

| Cutting Diameter (DC/DCX) | 12 mm | Functional Length (LF) | 90 mm |
| Cutting Diameter (DC) | 12 mm | Tool Type | 90° indexable endmills |
| Cutting Item Count (CICT) | 1 | Flute Count (NOF) | 1 |
| Depth of Cut Maximum (APMX) | 5.8 mm | Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 90 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| 柄部形式 | Round | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 90 Degrees | 测量方式 | Metric |
| 应用 | | 坡走铣 | 方肩铣 | 槽铣加工 | 沉孔铣削 | 钻铣 | | 刀体材质 | Steel |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Master Insert Identification (MIID) | SOMT 060204-HQ | 单位 | M |
| Head Length (LH) | 25 mm |
产品特性

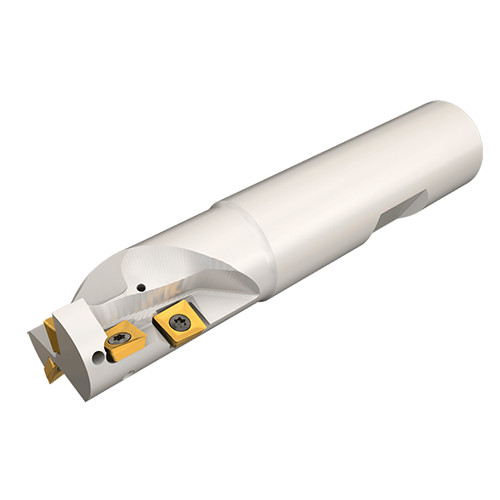

| 系列描述 | 钻铣刀，夹持方形铣刀片S/XOMT | 系列名称 | E90XC |
| 备注 | For adaptation, click on More Info Use the XOMT 06.... insert in central face location | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
0.1240
名字
Indexable End Mills
系列名称
E90XC
品牌
Iscar
