产品规格

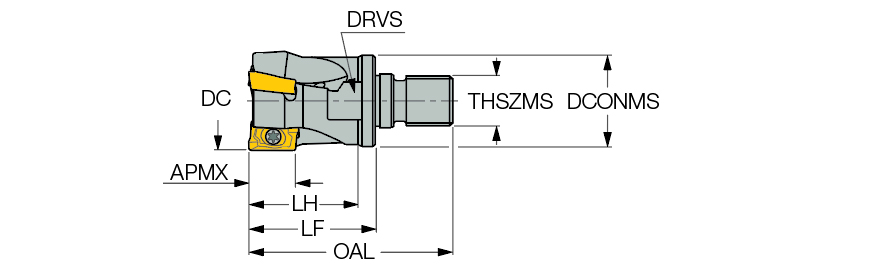

| Cutting Diameter (DC/DCX) | 40 mm | Connection Thread Nominal Size Machine Side (THSZMS) | M16 |
| Cutting Diameter (DC) | 40 mm | Drive Size (DRVS) | 25.1 mm |
| Cutting Item Count (CICT) | 4 | Usable Length (LU) | 40 mm |
| Depth of Cut Maximum (APMX) | 14.3 mm | Flute Count (NOF) | 4 |
| Overall Length (OAL) | 65 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Ramping Angle Maximum (RMPX) | 4 Degrees | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| 应用 | | 坡走铣 | 方肩铣 | 槽铣加工 | 沉孔铣削 | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 29 mm | 测量方式 | Metric |
| Master Insert Identification (MIID) | ADKT 1505PDTR | 刀体材质 | Steel |

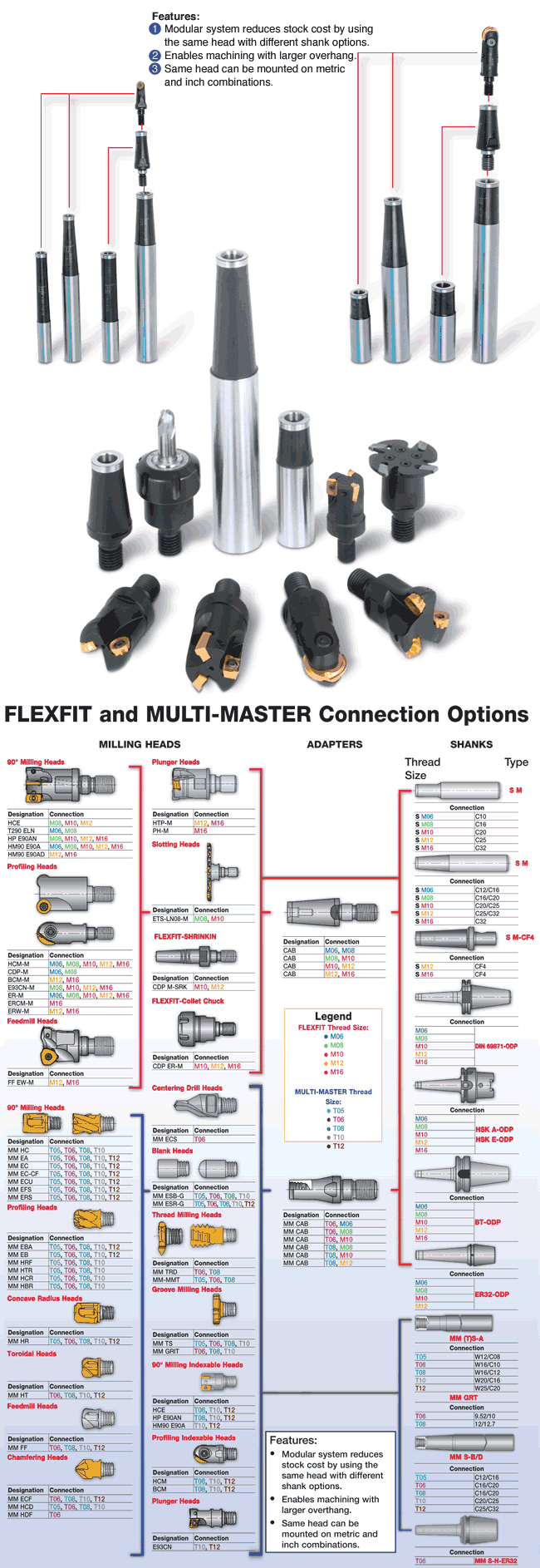

| Functional Length (LF) | 40 mm | Connection Code Machine Side (CCMS) | FLEXFIT模块化接杆 |
| Tool Type | 90° indexable endmills | 单位 | M |
产品特性
| 系列描述 | FLEXFIT模块螺纹连接式90°主偏角立铣刀，夹持铣刀片HM90 ADKT-1505… | 系列名称 | HM90 E90AD-M-15 |
| 备注 | 1- with standard square insert 2- with FF (fast feed) insert For adaptation, click on More Info. When mounting items with FLEXFIT threaded adaptation to their holders, the mating surfaces and threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the TQ_3 parameter | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
0.3290
名字
Indexable End Mills
系列名称
HM90 E90AD-M-15
品牌
Iscar
