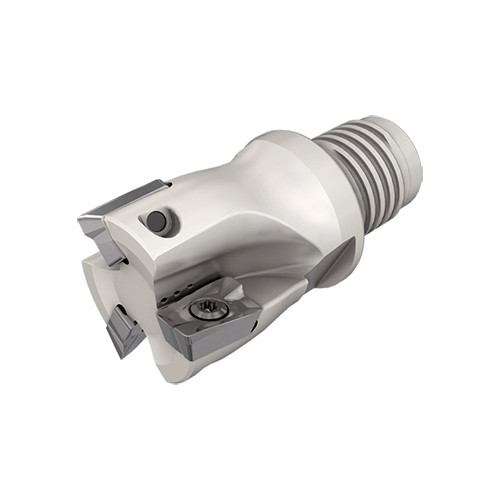

HM90 E90AD D32-3-MMT21JHP
变形金刚（MULTI-MASTER）模块螺纹连接式90°主偏角立铣刀，高压冷却JHP系列，夹持HELI2000及HELIMILL铣刀片
Price: Log in For Price
产品规格

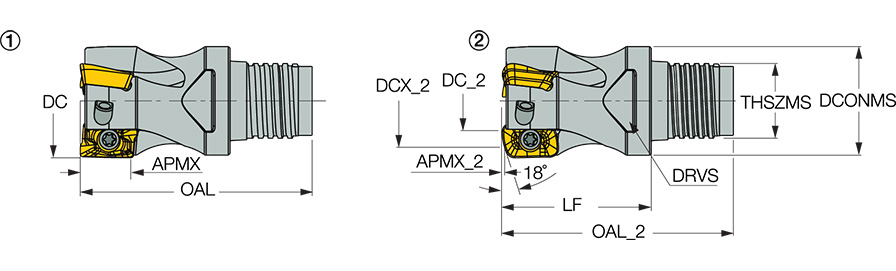

| Cutting Diameter (DC/DCX) | 32 mm | Tool Type | 90° indexable endmills |
| Cutting Diameter (DC) | 32 mm | Connection Thread Nominal Size Machine Side (THSZMS) | T21 |
| Cutting Item Count (CICT) | 3 | Drive Size (DRVS) | 24 mm |
| Depth of Cut Maximum (APMX) | 14.3 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 63 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 5.3 Degrees | Cutting Direction (HAND) | Right Hand |
| 应用 | | 坡走铣 | 方肩铣 | 槽铣加工 | 沉孔铣削 | 螺旋插补铣 | 面铣 | | 测量方式 | Metric |
| Connection Diameter Machine Side (DCONMS) | 30.5 mm | 刀体材质 | Steel |
| Master Insert Identification (MIID) | ADKT 1505PDTR | 单位 | M |
| Functional Length (LF) | 39.9 mm |
产品特性
| 系列描述 | 变形金刚（MULTI-MASTER）模块螺纹连接式90°主偏角立铣刀，高压冷却JHP系列，夹持HELI2000及HELIMILL铣刀片 | 系列名称 | HM90 E90AD-MM-15-JHP |
| 备注 | MULTI-MASTER螺纹接口不可使用润滑油；关于MULTI-MASTER螺纹锁紧扭矩请点击“更多信息” | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
0.3020
名字
Indexable End Mills
系列名称
HM90 E90AD-MM-15-JHP
品牌
Iscar
