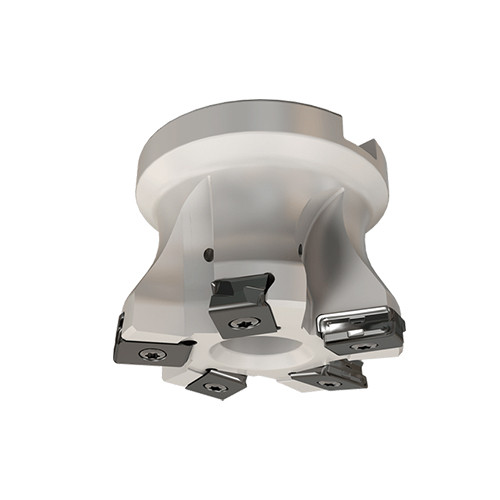

HTP D063-05-27-R-LN16
TANGPLUNGE，套式插铣刀，夹持带4个切削刃的立装铣刀片。面铣最大切削深度 D.O.C.为 3 mm；能以14 mm的切削宽度进行插铣加工。获取出色的加工侧壁表面质量，平的加工底面。
Price: Log in For Price
产品规格

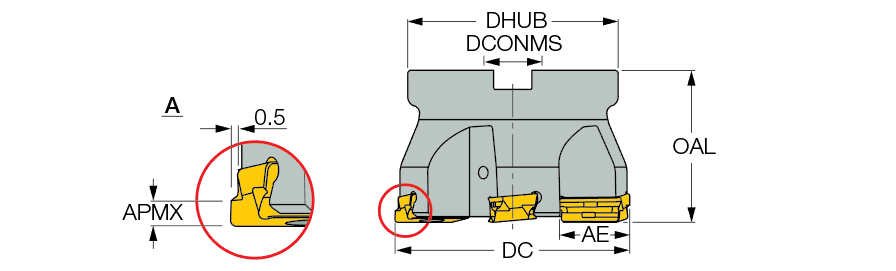

| 应用 | | 插铣 | 方肩铣 | 面铣 | | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 63 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 5 | 测量方式 | Metric |
| Depth of Cut Maximum (APMX) | 3 mm | Tool Type | Plungers cutters |
| Connection Diameter Machine Side (DCONMS) | 27 mm | 刀体材质 | Steel |
| Face Effective Cutting Edge Count (ZEFF) | 5 | Body Diameter (BD) | 59 mm |
| Overall Length (OAL) | 50 mm | 单位 | M |
产品特性
| 系列描述 | TANGPLUNGE，套式插铣刀，夹持带4个切削刃的立装铣刀片。面铣最大切削深度 D.O.C.为 3 mm；能以14 mm的切削宽度进行插铣加工。获取出色的加工侧壁表面质量，平的加工底面。 | 系列名称 | HTP-R-LN16 |
| 备注 | A-Used for rear cutting-see More Info | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
0.7080
名字
Plunge Mills
系列名称
HTP-R-LN16
品牌
Iscar
