HTP D4.00-07-1.50-R-LN16

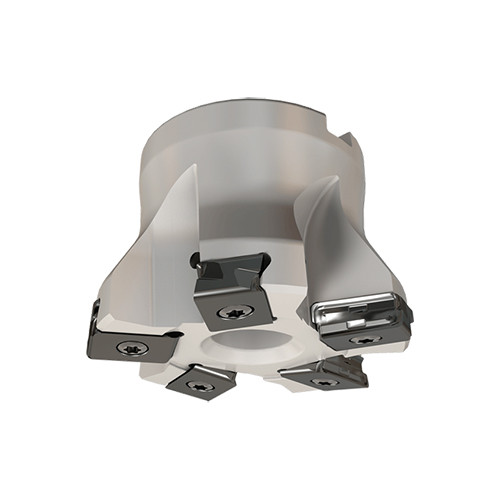

TANGPLUNGE, Shell mill plungers carrying tangentially clamped inserts with 4 cutting edges. .55″ side plunging capacity and .118″ maximum face milling DOC. Provide excellent side wall surface finish and a flat bottom.
Price: Log in For Price
产品规格

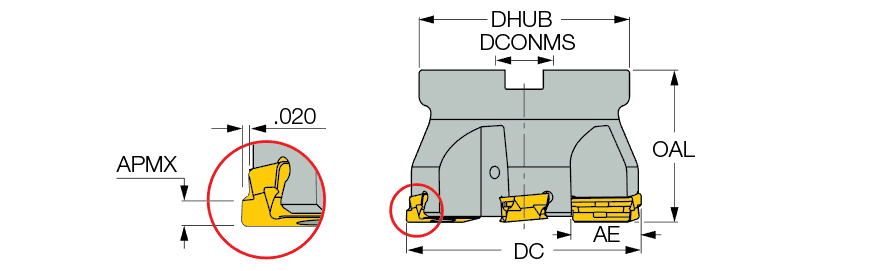

| 应用 | | 插铣 | 方肩铣 | 面铣 | | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 4″ | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 7 | 测量方式 | Inch |
| Depth of Cut Maximum (APMX) | 0.118″ | Tool Type | Plungers cutters |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | 刀体材质 | Steel |
| Face Effective Cutting Edge Count (ZEFF) | 7 | Body Diameter (BD) | 3.11″ |
| Overall Length (OAL) | 2″ | 单位 | I |
产品特性
| 系列描述 | TANGPLUNGE, Shell mill plungers carrying tangentially clamped inserts with 4 cutting edges. .55″ side plunging capacity and .118″ maximum face milling DOC. Provide excellent side wall surface finish and a flat bottom. | 系列名称 | HTP-R-LN16 |
| 备注 | .551 side plunging capacity and .118 maximum face milling DOC For adaptation, click on More Info | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
3.1328
名字
Plunge Mills
系列名称
HTP-R-LN16
品牌
Iscar
