产品规格
| 适用材料 | | 钢 | 铸铁 | | Cutting Direction (HAND) | Right Hand |
| 应用 | | T型槽 | 侧向开槽 | 坡走铣 | 埋头螺钉孔加工 | 带斜面或倒角方肩铣削 | 底部方肩铣 | 插铣 & 开凹槽 | 方肩铣 | 槽铣加工 | 沉孔铣削 | 钻铣 | 面铣 | | 切削刃材质 | Carbide |

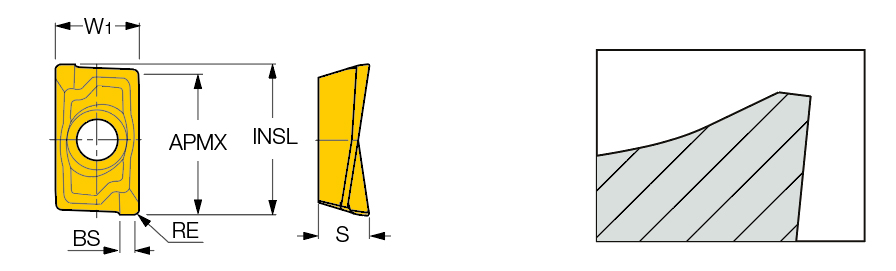

| Insert Length (INSL) | 15.65 mm | Tool Type | Single sided Inserts |
| Corner Radius (RE) | 0.8 mm | Minimum Feed per Tooth (fz(min)) | 0.08 mm/tooth |
| Depth of Cut Maximum (APMX) | 12 mm | 切削刃数量 | 2 |
| Insert Width (W1) | 9.57 mm | Cutting Edge Effective Length (LE) | 13.75 mm |
| Insert Thickness (S) | 5.64 mm | 测量方式 | Metric |
| 涂层 | AlTiN | 刀体材质 | Carbide |
| 等级 | IC910 | 单位 | M |
| Maximum Feed per Tooth (fz(max)) | 0.15 mm/tooth |
产品特性
| 系列描述 | 通用型2刃口螺旋刃刀片 | 系列名称 | ADKT 1505PDR/L-HM |
| COO | Israel | 品牌 | Iscar |
Shipping Info
包装重量
0.0080
名字

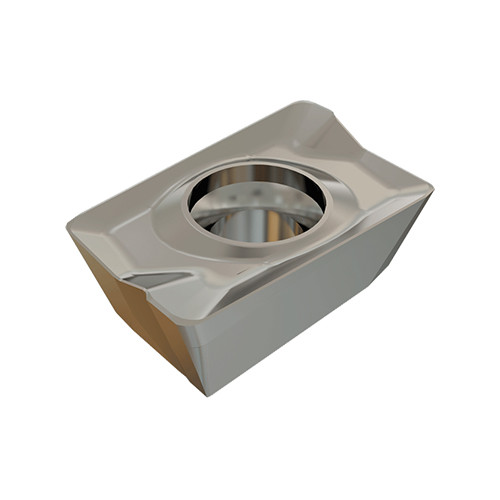

Milling Indexable Inserts
系列名称
ADKT 1505PDR/L-HM
品牌
Iscar
