产品规格
| 适用材料 | | 钢 | 不锈钢 | 高温合金 | | Maximum Feed per Tooth (fz(max)) | 0.15 mm/tooth |
| 应用 | | 坡走铣 | 埋头螺钉孔加工 | 带斜面或倒角方肩铣削 | 插铣 & 开凹槽 | 方肩铣 | 槽铣加工 | 钻铣 | 面铣 | | 切削刃材质 | Carbide |

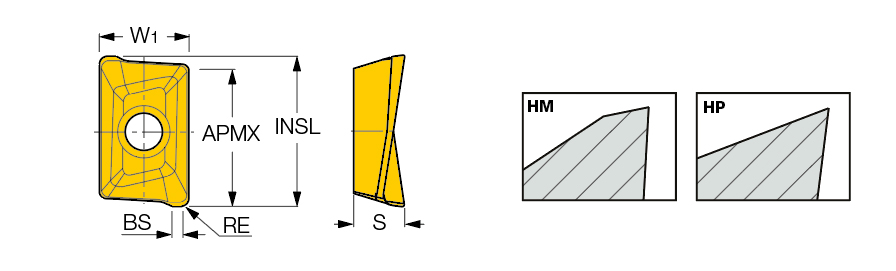

| Insert Length (INSL) | 11.2 mm | Tool Type | Mill AL, HTA Geometric Inserts |
| Corner Radius (RE) | 0.5 mm | Minimum Feed per Tooth (fz(min)) | 0.07 mm/tooth |
| Depth of Cut Maximum (APMX) | 9.8 mm | 切削刃数量 | 2 |
| Insert Width (W1) | 6.7 mm | Cutting Edge Effective Length (LE) | 10.3 mm |
| Insert Thickness (S) | 3.76 mm | 测量方式 | Metric |
| 涂层 | TiAlN | 刀体材质 | Carbide |
| 等级 | IC928 | 单位 | M |
产品特性
| 系列描述 | 用于加工不锈钢，高温合金的高正角刀片 | 系列名称 | APKR 1003PDR |
| COO | Israel | 品牌 | Iscar |
Shipping Info
包装重量
0.0032
名字

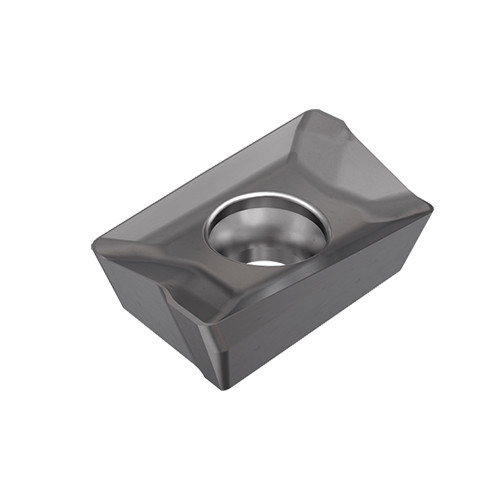

Milling Indexable Inserts
系列名称
APKR 1003PDR
品牌
Iscar
