产品规格

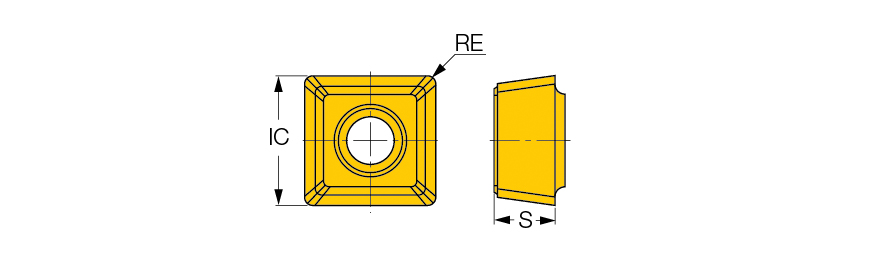

| Insert Thickness (S) | 3.81 mm | 适用材料 | | 钢 | 不锈钢 | 铸铁 | 硬材料 | 高温合金 | |
| Inscribed Circle Diameter (IC) | 9 mm | 切削刃材质 | Carbide |
| Corner Radius (RE) | 0.6 mm | Tool Type | Indexable drilling inserts |
| 涂层 | TiAlN+AlTiN+TiN | 测量方式 | Metric |
| 等级 | IC808 | 刀体材质 | Carbide |
| 应用 | | 钻削 | 钻铣 | | 单位 | M |
产品特性
| 系列描述 | DR钻刀片，加工碳钢和软材料 | COO | Israel |
Shipping Info
包装重量
0.0045
