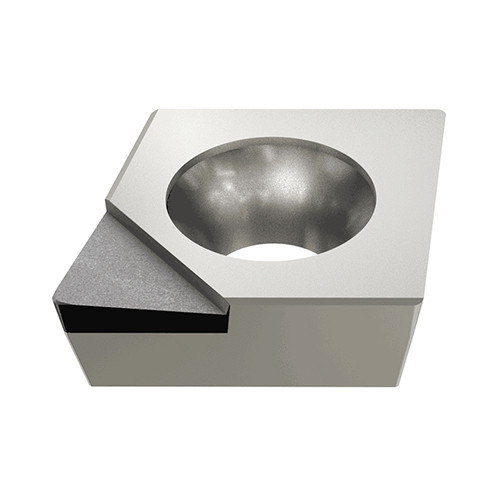

CCMT 09T304D ID5
80° rhombic inserts with PCD single-top corner, brazed tip and a positive rake angle. Used for aluminum finishing
Price: Log in For Price
产品规格
| 适用材料 | | 黑色金属 | | Tool Type | Turn Ultra hard Inserts |
| 应用 | | 内孔背车，80°刀尖角菱形刀片 | | 最小切削深度 | 0.1 mm |
| 刀片类型 | CCMT | Depth of Cut Maximum (APMX) | 3 mm |
| Corner Radius (RE) | 0.4 mm | 最小车削进给(ft(min)) | 0.05 mm/rev |
| 刀片尺寸 | 09T304 | Max. Turning Feed (ft(max)) | 0.3 mm/rev |
| Cutting Edge Length (L) | 9.7 mm | Clearance Angle Major (AN) | 7 Degrees |
| Insert Thickness (S) | 3.97 mm | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 9.52 mm | 断屑槽型 | DW |
| 切削刃材质 | PCD | 测量方式 | Metric |
| 等级 | ID5 | 刀体材质 | Carbide |
| Fixing Hole Diameter (D1) | 4.4 mm | 单位 | M |
产品特性
| 系列描述 | 80° rhombic inserts with PCD single-top corner, brazed tip and a positive rake angle. Used for aluminum finishing | 系列名称 | CCMT (PCD) |
| 备注 | 详细尺寸和公差，请点击“”more info“” | 品牌 | Iscar |
| COO | Korea |
Shipping Info
包装重量
0.0090
名字
Turning Indexable Inserts
系列名称
CCMT (PCD)
品牌
Iscar
