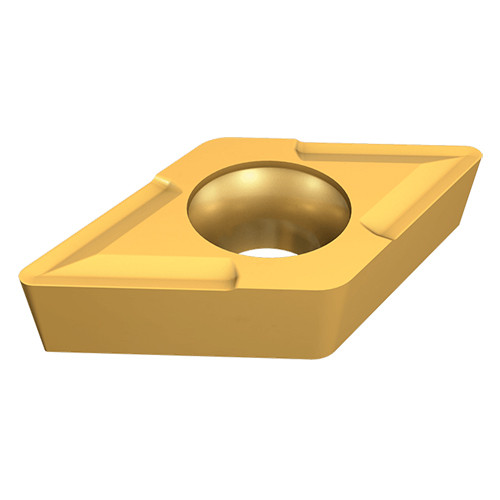

DCGT 11T304 IC30N
55° rhombic inserts with a 7° positive clearance for finishing applications.
Price: Log in For Price
产品规格
| 适用材料 | | 钢 | 不锈钢 | 硬材料 | | Tool Type | Turn Positive Inserts |
| 应用 | | Ext. 55° Diamond 107.5° Appr. | Ext. 55° Diamond 62.5° Approac | Ext. 55° Diamond 91° Approach | Ext. 55° Diamond 93° Approach | Int. 55° Diamond 93 95° Approac | Y Axis for Swiss Type Machines | | 最小切削深度 | 1 mm |

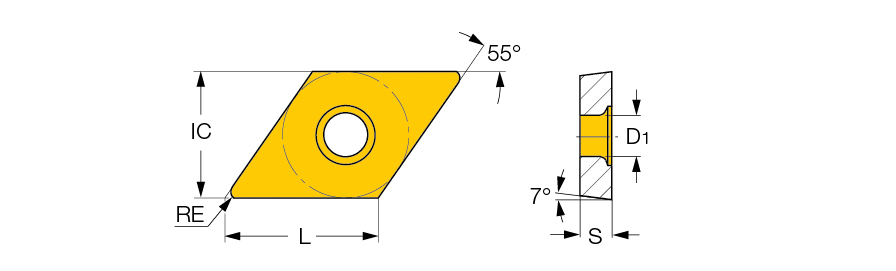

| Corner Radius (RE) | 0.4 mm | Depth of Cut Maximum (APMX) | 2.5 mm |
| 刀片尺寸 | 3-1 | 最小车削进给(ft(min)) | 0.12 mm/rev |
| Cutting Edge Length (L) | 11.6 mm | Max. Turning Feed (ft(max)) | 0.25 mm/rev |
| Insert Thickness (S) | 3.97 mm | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 9.52 mm | 断屑槽型 | 14 |
| 切削刃材质 | Cermet | 测量方式 | Metric |
| 涂层 | Uncoated | 刀体材质 | Carbide |
| 等级 | IC30N | 单位 | M |
| Fixing Hole Diameter (D1) | 4.4 mm |
产品特性
| 系列描述 | 55° rhombic inserts with a 7° positive clearance for finishing applications. | 系列名称 | DCMT/DCGT |
| 备注 | For dimensions and tolerances, Click on More Info Right-hand inserts for right-hand external tools and for left-hand internal tools. | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
0.0035
名字
Turning Indexable Inserts
系列名称
DCMT/DCGT
品牌
Iscar
