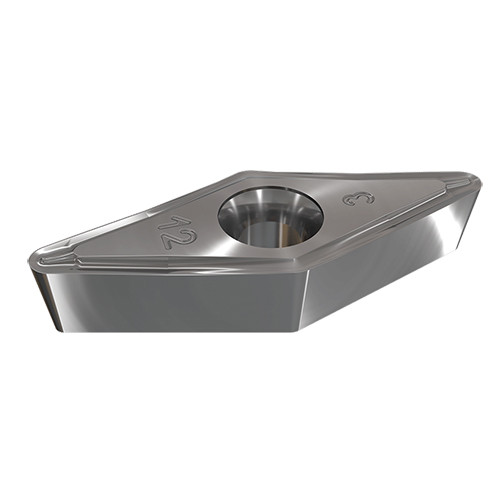

VCMT 160408-SM IC907
35° rhombic 7° positive flank inserts used for semi-finishing and finish turning. Chip breaking in moderate feed range. Positive rake, low cutting forces. Used for a wide range of materials, including soft and exotic alloys.
Price: Log in For Price
产品规格
| 适用材料 | | 钢 | 不锈钢 | 铸铁 | 硬材料 | 黑色金属 | 高温合金 | | Tool Type | Turn Positive Inserts |
| 应用 | | 铝轮毂内孔车削 切槽加工 | | 最小切削深度 | 0.9 mm |

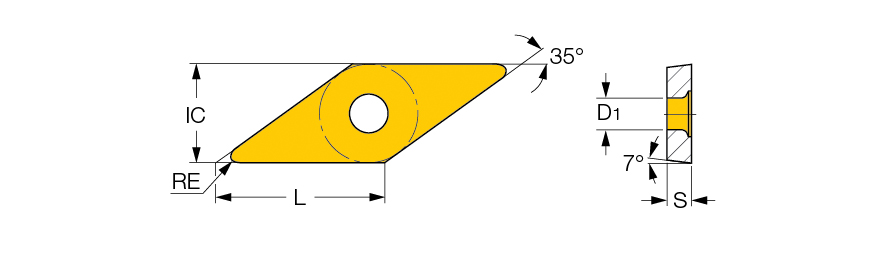

| Corner Radius (RE) | 0.8 mm | Depth of Cut Maximum (APMX) | 2.5 mm |
| 刀片尺寸 | 332-SM | 最小车削进给(ft(min)) | 0.07 mm/rev |
| Cutting Edge Length (L) | 16.6 mm | Max. Turning Feed (ft(max)) | 0.25 mm/rev |
| Insert Thickness (S) | 4.76 mm | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 9.52 mm | 断屑槽型 | SM |
| 切削刃材质 | Carbide | 测量方式 | Metric |
| 涂层 | TiAlN | 刀体材质 | Carbide |
| 等级 | IC907 | 单位 | M |
| Fixing Hole Diameter (D1) | 4.4 mm |
产品特性
| 系列描述 | 35° rhombic 7° positive flank inserts used for semi-finishing and finish turning. Chip breaking in moderate feed range. Positive rake, low cutting forces. Used for a wide range of materials, including soft and exotic alloys. | 系列名称 | VCMT-SM |
| 备注 | 尺寸及公差，点击“更多信息”。 | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
0.0111
名字
Turning Indexable Inserts
系列名称
VCMT-SM
品牌
Iscar
