CNMG 120412-TF IC8150
Double-sided 80° rhombic inserts, positive rake angle that varies along the edge to negative in order to prevent chipping. Special design reduces cratering. Used for carbon and alloy steel, stainless steel and high temp. alloys.
Price: Log in For Price
产品规格
| 适用材料 | | 钢 | 铸铁 | | Tool Type | Turn Negative Inserts |
| 应用 | | Ext. 100° Diamond 75° Approach | Ext. 100° Diamond 75°Face Appr | Ext. 80° Diamond 95° Approach | Int. 80° Diamond 95° Approach | | 最小切削深度 | 1.5 mm |

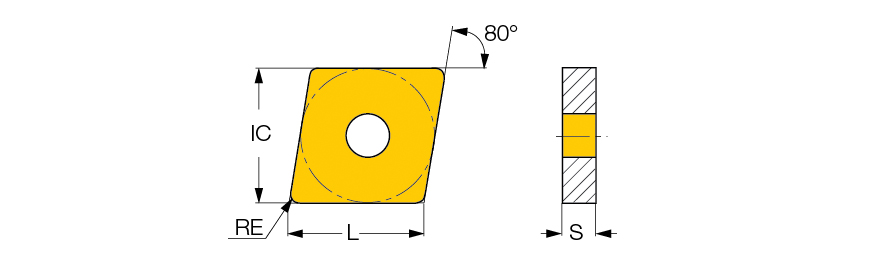

| Corner Radius (RE) | 1.2 mm | Depth of Cut Maximum (APMX) | 4.5 mm |
| 刀片尺寸 | 433-TF | 最小车削进给(ft(min)) | 0.15 mm/rev |
| Cutting Edge Length (L) | 12.9 mm | Max. Turning Feed (ft(max)) | 0.4 mm/rev |
| Insert Thickness (S) | 4.76 mm | Clearance Angle Major (AN) | 0 Degrees |
| Inscribed Circle Diameter (IC) | 12.7 mm | 断屑槽型 | TF |
| 切削刃材质 | Carbide | 测量方式 | Metric |
| 涂层 | TiCN+Al2O3+TiCN+TiN | 刀体材质 | Carbide |
| 等级 | IC8150 | 单位 | M |
| Fixing Hole Diameter (D1) | 5.16 mm |
产品特性
| 系列描述 | Double-sided 80° rhombic inserts, positive rake angle that varies along the edge to negative in order to prevent chipping. Special design reduces cratering. Used for carbon and alloy steel, stainless steel and high temp. alloys. | 系列名称 | CNMG/CNGG-TF |
| 备注 | 尺寸及公差，点击“更多信息”。 | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
0.0106
名字
Turning Indexable Inserts
系列名称
CNMG/CNGG-TF
品牌
Iscar
