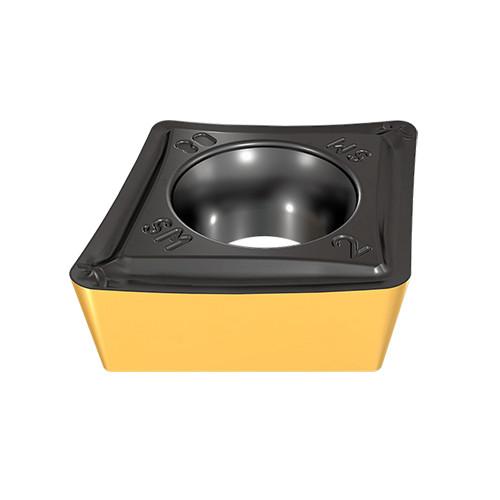

CCMT 09T304-SM IC8150
Single-sided turning inserts for semi finishing and finishing. Chip breaking in moderate feed range. Positive rake, low cutting forces. Used for soft materials and exotic alloys.
Price: Log in For Price
产品规格
| 适用材料 | | 钢 | 铸铁 | | Tool Type | Turn Positive Inserts |
| 应用 | | 内孔背车，80°刀尖角菱形刀片 | | 最小切削深度 | 0.5 mm |

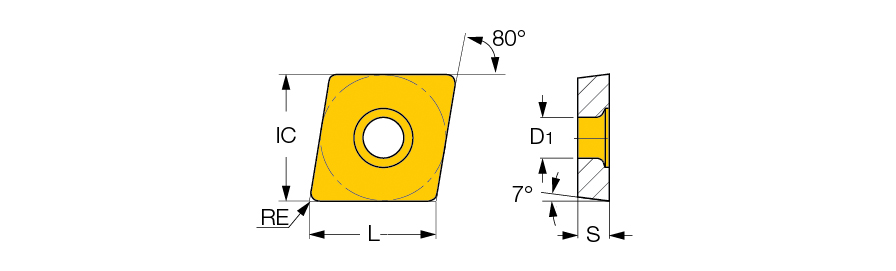

| Corner Radius (RE) | 0.4 mm | Depth of Cut Maximum (APMX) | 2.5 mm |
| 刀片尺寸 | 3-1-SM | 最小车削进给(ft(min)) | 0.07 mm/rev |
| Cutting Edge Length (L) | 9.7 mm | Max. Turning Feed (ft(max)) | 0.25 mm/rev |
| Insert Thickness (S) | 3.97 mm | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 9.52 mm | 断屑槽型 | SM |
| 切削刃材质 | Carbide | 测量方式 | Metric |
| 涂层 | TiCN+Al2O3+TiCN+TiN | 刀体材质 | Carbide |
| 等级 | IC8150 | 单位 | M |
| Fixing Hole Diameter (D1) | 4.4 mm |
产品特性
| 系列描述 | Single-sided turning inserts for semi finishing and finishing. Chip breaking in moderate feed range. Positive rake, low cutting forces. Used for soft materials and exotic alloys. | 系列名称 | CCMT/CCGT-SM |
| 备注 | 详细尺寸和公差，请点击“”more info“” | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
0.0047
名字
Turning Indexable Inserts
系列名称
CCMT/CCGT-SM
品牌
Iscar
