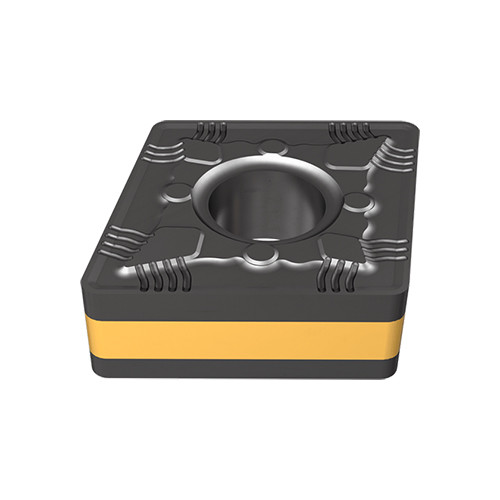

CNMG 120412-NR IC5005
Double-sided 80° rhombic inserts with a special chipformer for heavy machining.
Price: Log in For Price
产品规格
| 适用材料 | | 钢 | 铸铁 | 硬材料 | | Tool Type | Turn Negative Inserts |
| 应用 | | Ext. 100° Diamond 75° Approach | Ext. 100° Diamond 75°Face Appr | Ext. 80° Diamond 95° Approach | Int. 80° Diamond 95° Approach | | 最小切削深度 | 1 mm |

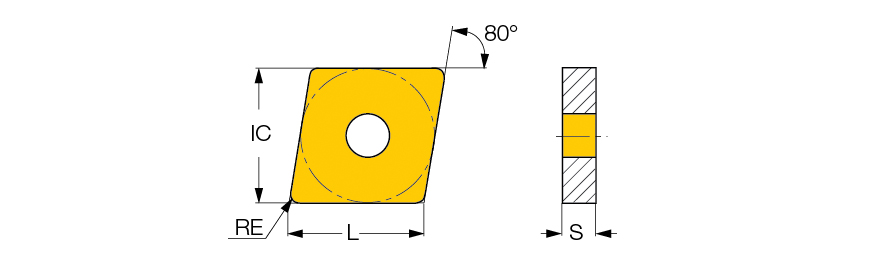

| Corner Radius (RE) | 1.2 mm | Depth of Cut Maximum (APMX) | 5 mm |
| 刀片尺寸 | 433-NR | 最小车削进给(ft(min)) | 0.23 mm/rev |
| Cutting Edge Length (L) | 12.9 mm | Max. Turning Feed (ft(max)) | 0.55 mm/rev |
| Insert Thickness (S) | 4.76 mm | Clearance Angle Major (AN) | 0 Degrees |
| Inscribed Circle Diameter (IC) | 12.7 mm | 断屑槽型 | NR |
| 切削刃材质 | Carbide | 测量方式 | Metric |
| 涂层 | TiCN+Al2O3+TiN | 刀体材质 | Carbide |
| 等级 | IC5005 | 单位 | M |
| Fixing Hole Diameter (D1) | 5.16 mm |
产品特性
| 系列描述 | Double-sided 80° rhombic inserts with a special chipformer for heavy machining. | 系列名称 | CNMG-NR |
| 备注 | 尺寸及公差，点击“更多信息”。 | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
0.0108
名字
Turning Indexable Inserts
系列名称
CNMG-NR
品牌
Iscar
