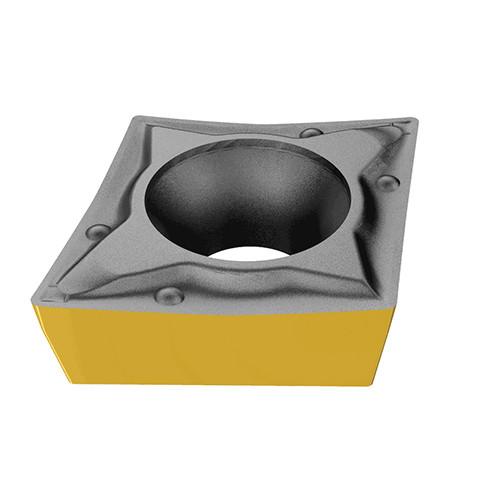

CCMT 060204-PF IC807
80° rhombic 7° positive flank inserts. Used for semi-finishing and finishing applications on soft materials and exotic alloys. Positive rake angle, low cutting forces.
Price: Log in For Price
产品规格
| 适用材料 | | 钢 | 不锈钢 | 铸铁 | 硬材料 | 高温合金 | | Tool Type | Turn Positive Inserts |
| 应用 | | 内孔背车，80°刀尖角菱形刀片 | | 最小切削深度 | 0.4 mm |

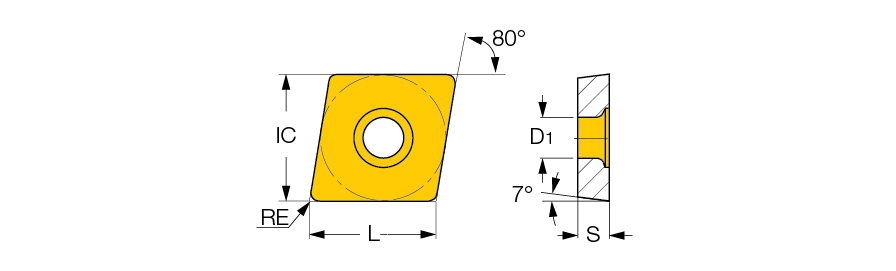

| Corner Radius (RE) | 0.4 mm | Depth of Cut Maximum (APMX) | 2.5 mm |
| 刀片尺寸 | 2-1-PF | 最小车削进给(ft(min)) | 0.04 mm/rev |
| Cutting Edge Length (L) | 6.45 mm | Max. Turning Feed (ft(max)) | 0.3 mm/rev |
| Insert Thickness (S) | 2.38 mm | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 6.35 mm | 断屑槽型 | PF |
| 切削刃材质 | Carbide | 测量方式 | Metric |
| 涂层 | TiAlN+TiN | 刀体材质 | Carbide |
| 等级 | IC807 | 单位 | M |
| Fixing Hole Diameter (D1) | 2.85 mm |
产品特性
| 系列描述 | 80° rhombic 7° positive flank inserts. Used for semi-finishing and finishing applications on soft materials and exotic alloys. Positive rake angle, low cutting forces. | 系列名称 | CCMT-PF |
| 备注 | 尺寸及公差，点击“更多信息”。 | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
0.0023
名字
Turning Indexable Inserts
系列名称
CCMT-PF
品牌
Iscar
