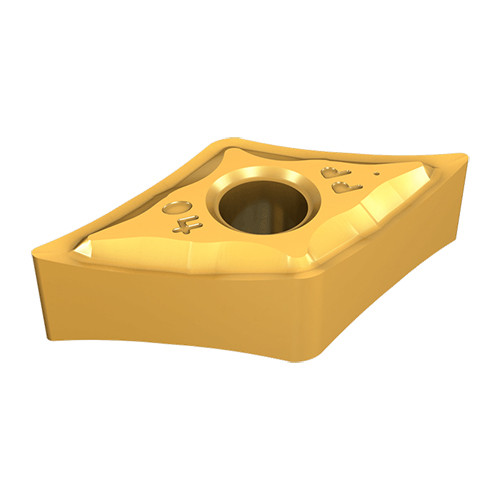

DNMG 150408-PP IC8250
Double-sided 55° rhombic inserts with a positive rake angle and sharp, positive-radial edge. Used for machining very ductile materials such as aluminum alloys, soft, low carbon steel, stainless steel, and high temperature alloys.
Price: Log in For Price
产品规格
| 适用材料 | | 钢 | 不锈钢 | | Tool Type | Turn Negative Inserts |
| 应用 | | Ext. 55° Diamond 62.5° Approac | Ext. 55° Diamond 93° Approach | Int. 55° Diamond 93 95° Approac | | 最小切削深度 | 1 mm |
| 刀片类型 | DNMG | Depth of Cut Maximum (APMX) | 4 mm |
| Corner Radius (RE) | 0.8 mm | 最小车削进给(ft(min)) | 0.12 mm/rev |
| 刀片尺寸 | 432-PP | Max. Turning Feed (ft(max)) | 0.3 mm/rev |

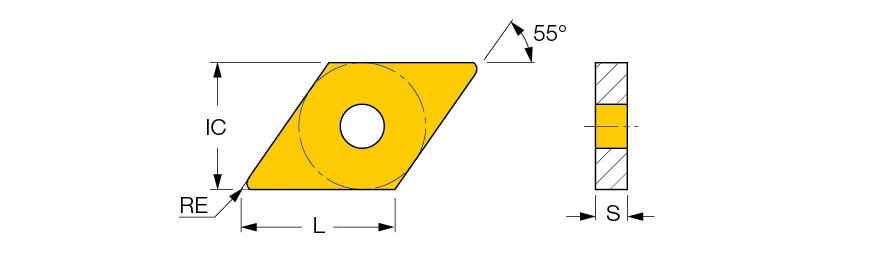

| Cutting Edge Length (L) | 15.5 mm | Clearance Angle Major (AN) | 0 Degrees |
| Insert Thickness (S) | 4.76 mm | 断屑槽型 | PP |
| Inscribed Circle Diameter (IC) | 12.7 mm | 测量方式 | Metric |
| 切削刃材质 | Carbide | 刀体材质 | Carbide |
| 涂层 | TiCN+Al2O3+TiN | 单位 | M |
| 等级 | IC8250 |
产品特性
| 系列描述 | Double-sided 55° rhombic inserts with a positive rake angle and sharp, positive-radial edge. Used for machining very ductile materials such as aluminum alloys, soft, low carbon steel, stainless steel, and high temperature alloys. | 系列名称 | DNMG/DNGG-PP |
| 备注 | 尺寸及公差，点击“更多信息”。 | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
0.0135
名字
Turning Indexable Inserts
系列名称
DNMG/DNGG-PP
品牌
Iscar
