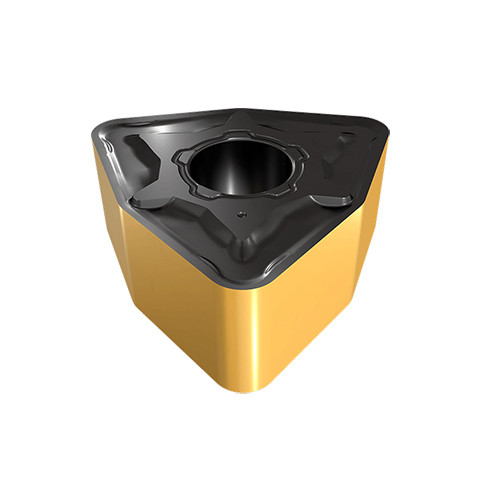

WNMG 080408-M3M IC807
Double-sided trigon inserts, first choice for machining stainless and low carbon steel. Positive rake angle, low cutting forces, providing very reliable performance and excellent tool life.
Price: Log in For Price
产品规格
| 适用材料 | | 钢 | 不锈钢 | 铸铁 | 硬材料 | 高温合金 | | Tool Type | Turn Negative Inserts |
| 应用 | | Ext. 80° Trigon 95° Approach | Int. 80° Trigon 95° Approach | | 最小切削深度 | 0.5 mm |

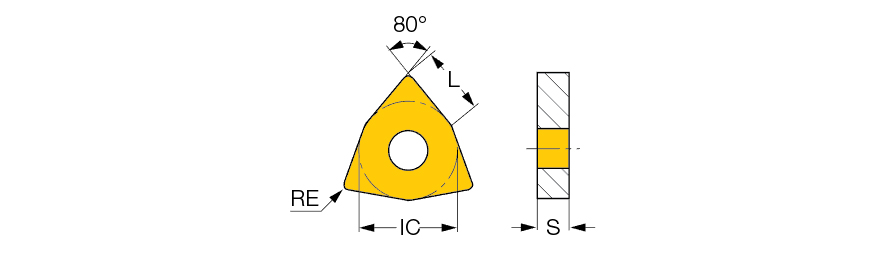

| Corner Radius (RE) | 0.8 mm | Depth of Cut Maximum (APMX) | 5 mm |
| 刀片尺寸 | 432-M3 | 最小车削进给(ft(min)) | 0.15 mm/rev |
| Cutting Edge Length (L) | 8.7 mm | Max. Turning Feed (ft(max)) | 0.5 mm/rev |
| Insert Thickness (S) | 4.76 mm | Clearance Angle Major (AN) | 0 Degrees |
| Inscribed Circle Diameter (IC) | 12.7 mm | 断屑槽型 | M3M |
| 切削刃材质 | Carbide | 测量方式 | Metric |
| 涂层 | TiAlN+TiN | 刀体材质 | Carbide |
| 等级 | IC807 | 单位 | M |
产品特性
| 系列描述 | Double-sided trigon inserts, first choice for machining stainless and low carbon steel. Positive rake angle, low cutting forces, providing very reliable performance and excellent tool life. | 系列名称 | WNMG-M3M |
| 备注 | 尺寸及公差，点击“更多信息”。 | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
0.0112
名字
Turning Indexable Inserts
系列名称
WNMG-M3M
品牌
Iscar
