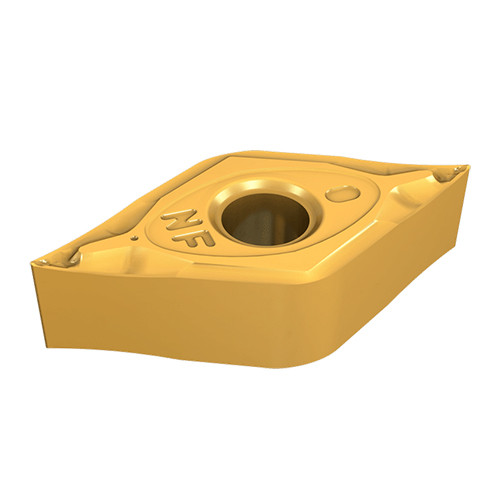

DNMG 150604-NF IC9150

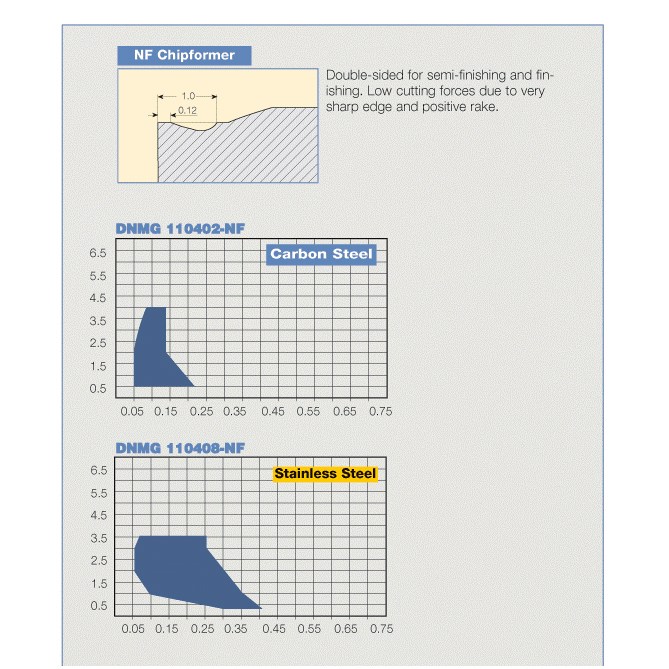

Double-sided 55° rhombic insert, used for semi-finishing and finishing applications. Low cutting forces due to very sharp edge and positive rake.
Price: Log in For Price
产品规格
| 适用材料 | | 钢 | 铸铁 | | Tool Type | Turn Negative Inserts |
| 应用 | | Ext. 55° Diamond 62.5° Approac | Ext. 55° Diamond 93° Approach | Int. 55° Diamond 93 95° Approac | | 最小切削深度 | 0.8 mm |
| Corner Radius (RE) | 0.4 mm | Depth of Cut Maximum (APMX) | 3.5 mm |
| 刀片尺寸 | 441-NF | 最小车削进给(ft(min)) | 0.07 mm/rev |
| Cutting Edge Length (L) | 15.5 mm | Max. Turning Feed (ft(max)) | 0.25 mm/rev |
| Insert Thickness (S) | 6.35 mm | Clearance Angle Major (AN) | 0 Degrees |
| Inscribed Circle Diameter (IC) | 12.7 mm | 断屑槽型 | NF |
| 切削刃材质 | Carbide | 测量方式 | Metric |
| 涂层 | TiCN+Al2O3+TiN | 刀体材质 | Carbide |
| 等级 | IC9150 | 单位 | M |
产品特性
| 系列描述 | Double-sided 55° rhombic insert, used for semi-finishing and finishing applications. Low cutting forces due to very sharp edge and positive rake. | 系列名称 | DNMG-NF |
| 备注 | 尺寸及公差，点击“更多信息”。 | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
0.0178
名字
Turning Indexable Inserts
系列名称
DNMG-NF
品牌
Iscar
