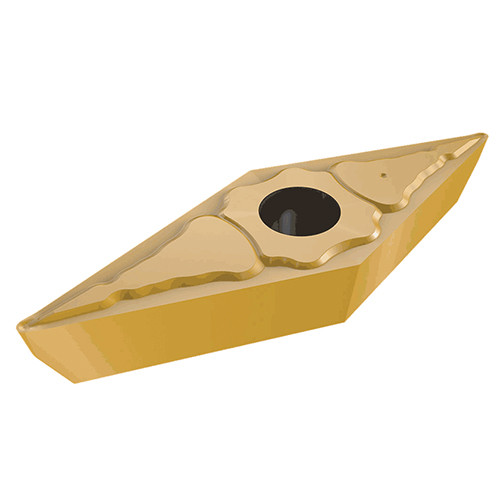

VCMT 160404-FPC IC520N
35° rhombic 7° cermet positive flank inserts for semi-finish turning of steel and automotive components
Price: Log in For Price
产品规格

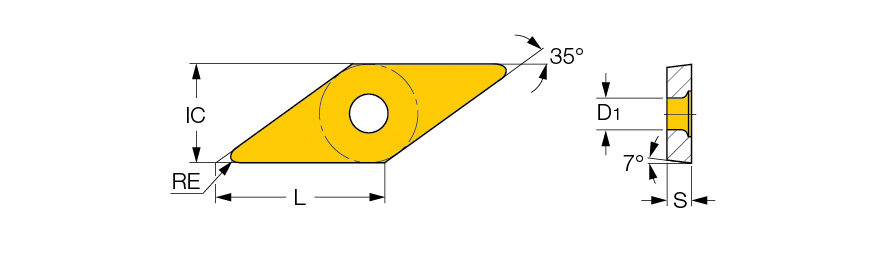

| 适用材料 | | 钢 | 不锈钢 | | Fixing Hole Diameter (D1) | 4.4 mm |
| 应用 | | Ext. 35° Diamond 112° Approach | Ext. 35° Diamond 117° Approach | Ext. 35° Diamond 72.5° Approac | Ext. 35° Diamond 91° Approach | Ext. 35° Diamond 93° Approach | Int. 35° Diamo 95° Back Approa | Int. 35° Diamond 107.5°Approa | Int. 35° Diamond 93° Approach | Int. 35° Diamond 95° Approach | | Tool Type | Turn Negative Inserts |
| Corner Radius (RE) | 0.4 mm | 最小切削深度 | 0.7 mm |
| 刀片尺寸 | 331-FP | Depth of Cut Maximum (APMX) | 2 mm |
| Cutting Edge Length (L) | 16.6 mm | 最小车削进给(ft(min)) | 0.04 mm/rev |
| Insert Thickness (S) | 4.76 mm | Max. Turning Feed (ft(max)) | 0.22 mm/rev |
| Inscribed Circle Diameter (IC) | 9.52 mm | Clearance Angle Major (AN) | 7 Degrees |
| 切削刃材质 | Cermet | 测量方式 | Metric |
| 涂层 | TiCN+TiN | 刀体材质 | Carbide |
| 等级 | IC520N | 单位 | M |
产品特性
| 系列描述 | 35° rhombic 7° cermet positive flank inserts for semi-finish turning of steel and automotive components | 系列名称 | VCMT-FPC-CERMET |
| 备注 | For chipformer selection guide of cermet inserts, and for dimensions and tolerances, click on More Info | 品牌 | Iscar |
| COO | Korea |
Shipping Info
包装重量
0.0065
名字
Turning Indexable Inserts
系列名称
VCMT-FPC-CERMET
品牌
Iscar
