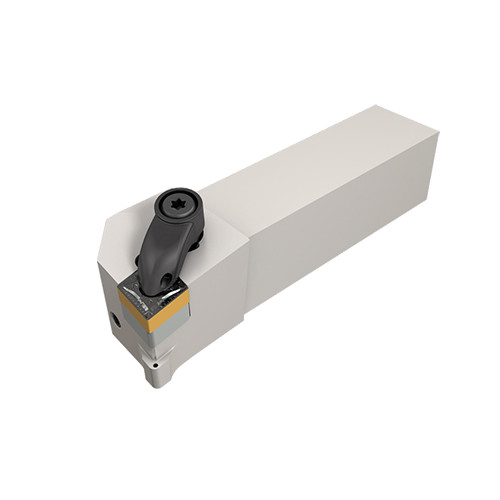

DCLNR 2525X-12-JHP-MC
Rigid Clamp tools with channels for high-pressure coolant carrying CNMG/X 80° rhombic inserts.
Price: Log in For Price
产品规格
| Shank Height (H) | 25 mm | 应用 | NULL |
| Shank Width (B) | 25 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Functional Length (LF) | 120 mm | Rake Angle Radial (GAMF) | -6 Degrees |
| Head Length (LH) | 35 mm | 刀体材质 | Steel |
| Functional Width (WF) | 32 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 12.7 mm | 测量方式 | Metric |
| Cutting Direction (HAND) | Right Hand | 单位 | M |
| Master Insert Identification (MIID) | CNMG 1204 |
产品特性
| 系列描述 | Rigid Clamp tools with channels for high-pressure coolant carrying CNMG/X 80° rhombic inserts. | 系列名称 | DCLNR/L-JHP-MC |
| COO | Israel | 品牌 | Iscar |
Shipping Info
包装重量
0.6310
名字
General Indexable Turning Tools
系列名称
DCLNR/L-JHP-MC
品牌
Iscar
