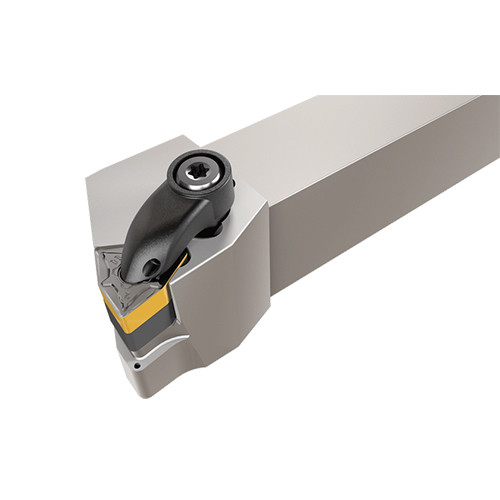

DWLNR 12-4-JHP-MC
Rigid Clamp tools with channels for high pressure coolant carrying WNMG/X 80° rhombic inserts.
Price: Log in For Price
产品规格

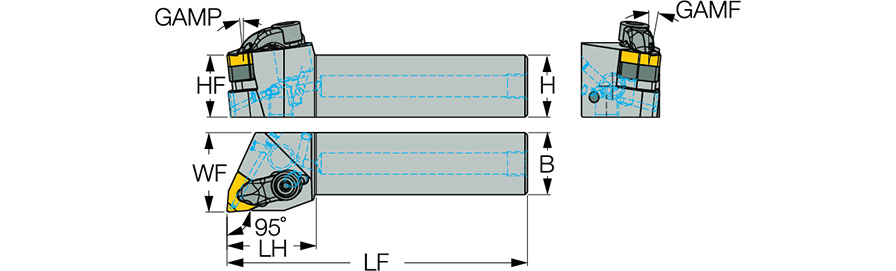

| Shank Height (H) | 3/4″ | 应用 | NULL |
| Shank Width (B) | 3/4″ | Rake Angle Axial (GAMP) | 6 Degrees |
| Functional Length (LF) | 4.173″ | Rake Angle Radial (GAMF) | 6 Degrees |
| Head Length (LH) | 1.417″ | 刀体材质 | Steel |
| Functional Width (WF) | 1″ | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 1/2″ | 测量方式 | Inch |
| Cutting Direction (HAND) | Right Hand | 单位 | I |
| Master Insert Identification (MIID) | WNMG 43.. |
产品特性
| 系列描述 | Rigid Clamp tools with channels for high pressure coolant carrying WNMG/X 80° rhombic inserts. | 系列名称 | DWLNR/L-JHP-MC |
| COO | Israel | 品牌 | Iscar |
Shipping Info
包装重量
0.9281
名字
General Indexable Turning Tools
系列名称
DWLNR/L-JHP-MC
品牌
Iscar
