产品规格

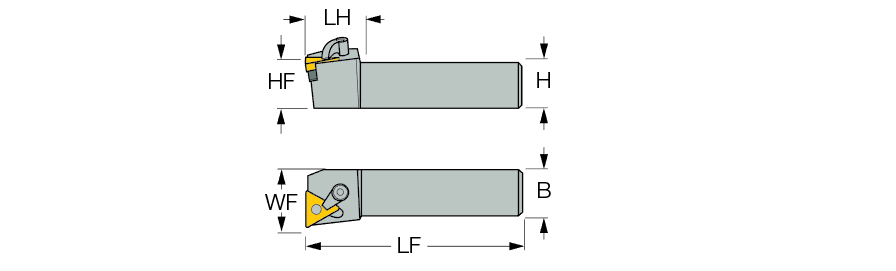

| Shank Height (H) | 3/4″ | 应用 | | Ext. 60° Triangle Facing | |
| Shank Width (B) | 3/4″ | Rake Angle Axial (GAMP) | -6 Degrees |
| Functional Length (LF) | 4-1/2″ | Rake Angle Radial (GAMF) | -6 Degrees |
| Head Length (LH) | 0.88″ | 刀体材质 | Steel |
| Functional Width (WF) | 1″ | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 3/8″ | 测量方式 | Inch |
| Cutting Direction (HAND) | Right Hand | 单位 | I |
| Master Insert Identification (MIID) | TN..3.. |
产品特性

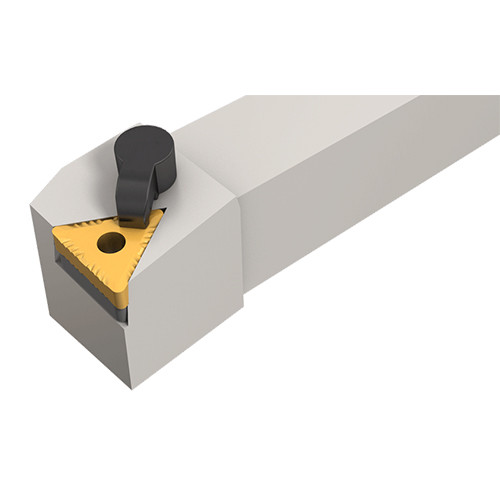

| 系列描述 | Comlock holders for facing with negative triangular inserts. | 系列名称 | MTFNR/L |
| COO | USA | 品牌 | Iscar |
Shipping Info
包装重量
0.9149
名字
General Indexable Turning Tools
系列名称
MTFNR/L
品牌
Iscar
