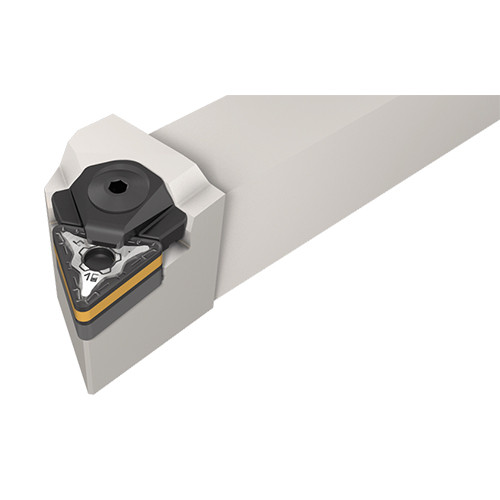

MTJNR 3225P-22W
93° lead angle wedge lock turning tools carrying negative triangular inserts.
Price: Log in For Price
产品规格

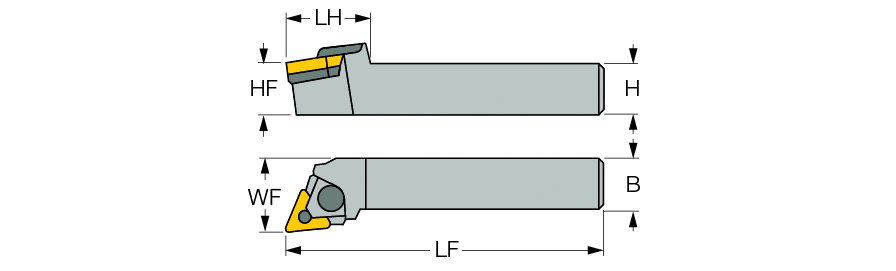

| Shank Height (H) | 32 mm | 应用 | | Ext. 60° Triangle 93° Approach | |
| Shank Width (B) | 25 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Functional Length (LF) | 170 mm | Rake Angle Radial (GAMF) | -6 Degrees |
| Head Length (LH) | 38 mm | 刀体材质 | Steel |
| Functional Width (WF) | 32 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 12.7 mm | 测量方式 | Metric |
| Cutting Direction (HAND) | Right Hand | 单位 | M |
| Master Insert Identification (MIID) | TNMG 2204 |
产品特性
| 系列描述 | 93° lead angle wedge lock turning tools carrying negative triangular inserts. | 系列名称 | MTJNR/L-W |
| COO | Israel | 品牌 | Iscar |
Shipping Info
包装重量
1.1070
名字
General Indexable Turning Tools
系列名称
MTJNR/L-W
品牌
Iscar
