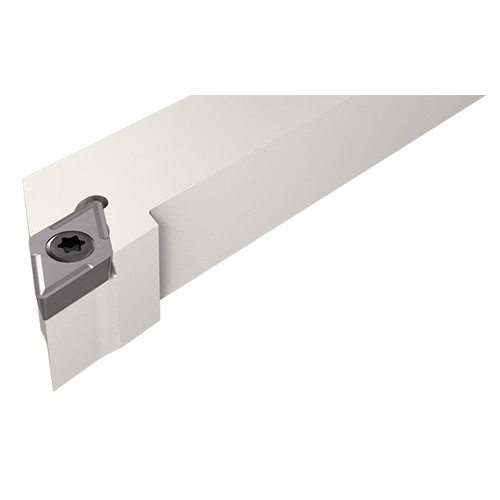

SDJCR 2525M-11
Screw lock tools carrying 55° diamond inserts with 7° clearance angle.
Price: Log in For Price
产品规格

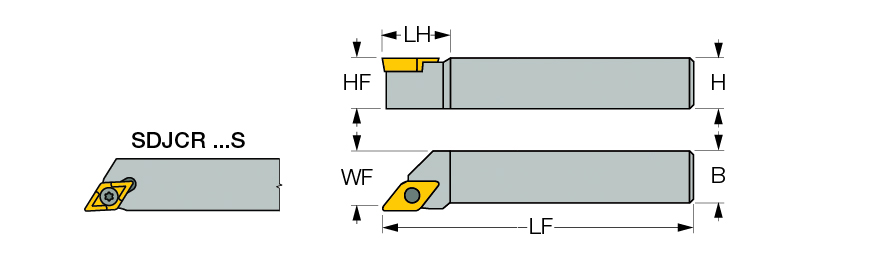

| Shank Height (H) | 25 mm | 应用 | NULL |
| Shank Width (B) | 25 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Functional Length (LF) | 150 mm | Rake Angle Radial (GAMF) | 0 Degrees |
| Head Length (LH) | 20 mm | 刀体材质 | Steel |
| Functional Width (WF) | 32 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 9.52 mm | 测量方式 | Metric |
| Cutting Direction (HAND) | Right Hand | 单位 | M |
| Master Insert Identification (MIID) | DC..11T3 |
产品特性
| 系列描述 | Screw lock tools carrying 55° diamond inserts with 7° clearance angle. | 系列名称 | SDJCR/L |
| COO | Korea | 品牌 | Iscar |
Shipping Info
包装重量
0.7370
名字
General Indexable Turning Tools
系列名称
SDJCR/L
品牌
Iscar
