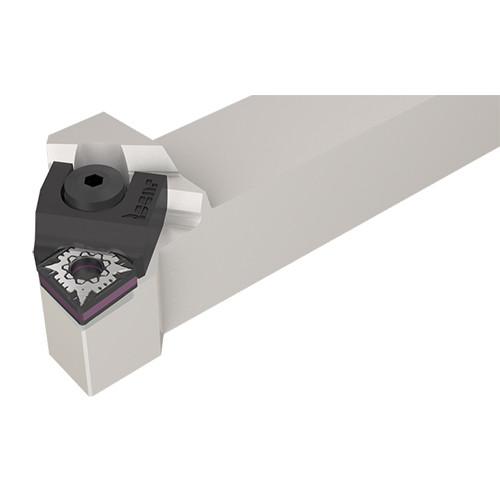

MULNR 2525M-12MW
MULTI-WEDGE lock external tools, carrying 80° negative rhombic or trigon or square inserts.
Price: Log in For Price
产品规格

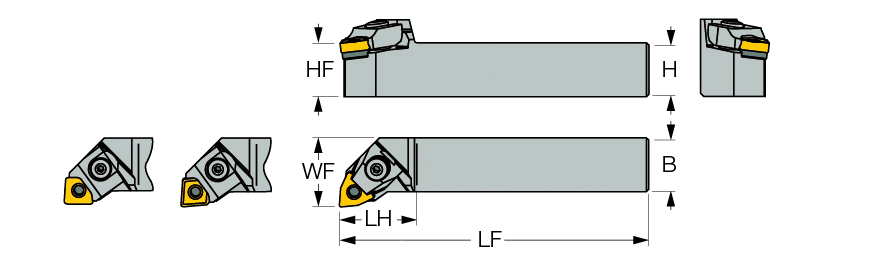

| Shank Height (H) | 25 mm | 应用 | NULL |
| Shank Width (B) | 25 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Functional Length (LF) | 150 mm | Rake Angle Radial (GAMF) | -6 Degrees |
| Head Length (LH) | 35 mm | 刀体材质 | Steel |
| Functional Width (WF) | 32 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 12.7 mm | 测量方式 | Metric |
| Cutting Direction (HAND) | Right Hand | 单位 | M |
产品特性
| 系列描述 | MULTI-WEDGE lock external tools, carrying 80° negative rhombic or trigon or square inserts. | 系列名称 | MULNR/L-12MW |
| 备注 | Only LC WN08 is supplied with the toolholder. The other two wedges should be ordered separately. RH wedge for RH tool LH wedge for LH tool For other wedges see more info | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
0.7830
名字
General Indexable Turning Tools
系列名称
MULNR/L-12MW
品牌
Iscar
