PCLCL 1010M-06S
Side lever lock tools carrying 80° positive rhombic inserts for Swiss automatic machines.
Price: Log in For Price
产品规格

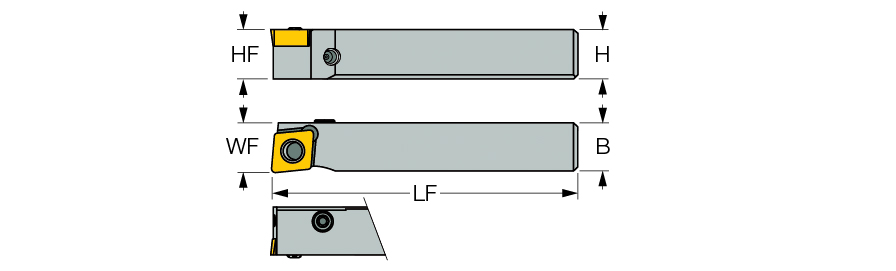

| Shank Height (H) | 10 mm | 应用 | NULL |
| Shank Width (B) | 10 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Functional Length (LF) | 150 mm | Rake Angle Radial (GAMF) | 0 Degrees |
| Functional Width (WF) | 10.2 mm | 刀体材质 | Steel |
| Inscribed Circle Diameter (IC) | 6.35 mm | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Left Hand | 测量方式 | Metric |
| Master Insert Identification (MIID) | CC.. 0602 | 单位 | M |
产品特性
| 系列描述 | Side lever lock tools carrying 80° positive rhombic inserts for Swiss automatic machines. | 系列名称 | PCLCR/L-S |
| 备注 | The clamping screw may by transferred to the opposite side if needed | 品牌 | Iscar |
| COO | Switzerland |
Shipping Info
包装重量
0.1400
名字
General Indexable Turning Tools
系列名称
PCLCR/L-S
品牌
Iscar
