C6 MULNL-45065-12MW
MULTI-WEDGE tools with CAMFIX (ISO 26623-1 standard) exchangeable tapered shanks, carrying negative 80° rhombic or trigon or square inserts.
Price: Log in For Price
产品规格

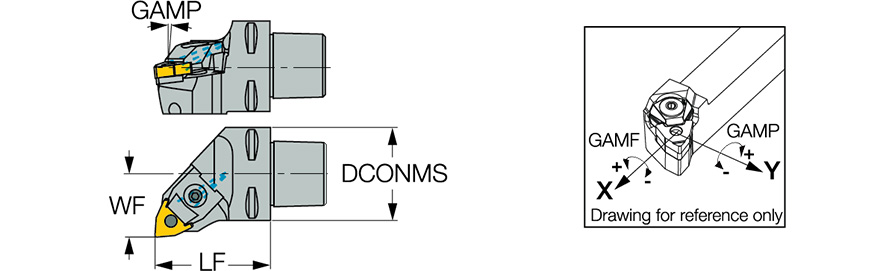

| Overall Length (OAL) | 103 mm | 应用 | NULL |
| Functional Length (LF) | 65 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Functional Width (WF) | 45 mm | Rake Angle Radial (GAMF) | -6 Degrees |
| Connection Diameter Machine Side (DCONMS) | 63 mm | 刀体材质 | Steel |
| Inscribed Circle Diameter (IC) | 12.7 mm | Tool Type | Tapered Shank Turning Tools |
| Cutting Direction (HAND) | Left Hand | 测量方式 | Metric |
| Master Insert Identification (MIID) | W/C/SNMG 1204.. | 单位 | M |
| Coolant Supply Property (CSP) | Coolant Thru |
产品特性
| 系列描述 | MULTI-WEDGE tools with CAMFIX (ISO 26623-1 standard) exchangeable tapered shanks, carrying negative 80° rhombic or trigon or square inserts. | 系列名称 | C#-MULNR/L-MW |

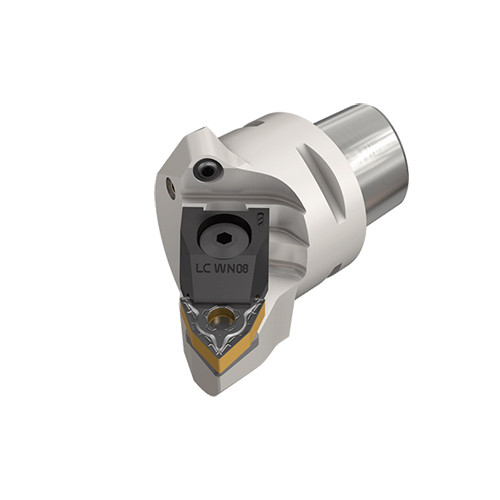

| 备注 | Only LC WN08 is supplied with the toolholder. The other two wedges should be ordered separately. RH wedge for RH tool. LH wedge for LH tool. For other wedges see more info. | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
1.3750
名字
General Indexable Turning Tools
系列名称
C#-MULNR/L-MW
品牌
Iscar
