PWLNR 3232P-08-JHP

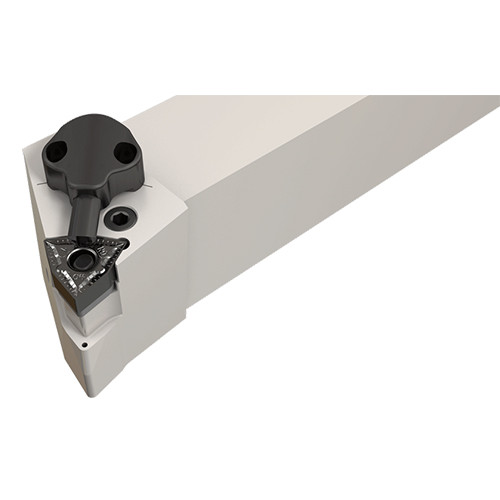

Lever Lock tools with channels for high-pressure coolant, carrying trigon inserts.
Price: Log in For Price
产品规格

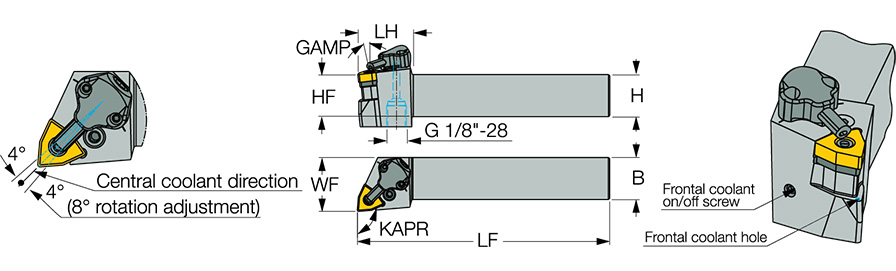

| Shank Height (H) | 32 mm | 应用 | NULL |
| Shank Width (B) | 32 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Functional Length (LF) | 170 mm | Rake Angle Radial (GAMF) | -6 Degrees |
| Head Length (LH) | 33 mm | 刀体材质 | Steel |
| Functional Width (WF) | 40 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 12.7 mm | 测量方式 | Metric |
| Cutting Direction (HAND) | Right Hand | 单位 | M |
| Master Insert Identification (MIID) | WNMG 0804 |
产品特性
| 系列描述 | Lever Lock tools with channels for high-pressure coolant, carrying trigon inserts. | 系列名称 | PWLNR/L-08-JHP |
| 备注 | 推荐切削参数请见其他页面 | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
1.4340
名字
General Indexable Turning Tools
系列名称
PWLNR/L-08-JHP
品牌
Iscar
