PCLNR 2525X-12X-JHP-MC

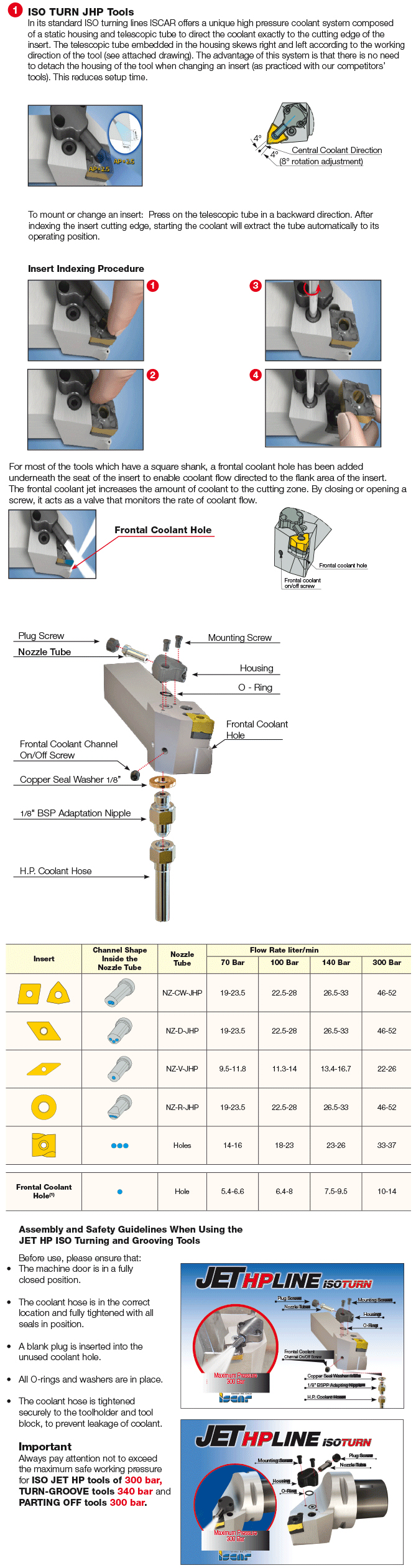

Lever lock tools with bottom inlets for high-pressure coolant channels carrying CNMX/CNMG 80° rhombic inserts. The tools were designed to be clamped in VDI and CAMFIX shanks with bottom coolant-fed toolholders.
Price: Log in For Price
产品规格

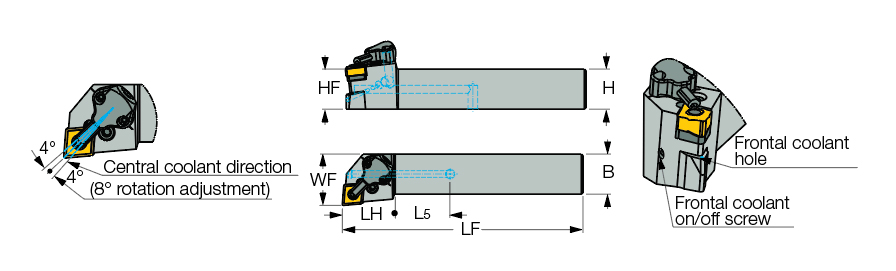

| Shank Height (H) | 25 mm | 应用 | NULL |
| Shank Width (B) | 25 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Functional Length (LF) | 118 mm | Rake Angle Radial (GAMF) | -6 Degrees |
| Head Length (LH) | 33 mm | 刀体材质 | Steel |
| Functional Width (WF) | 32 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 12.7 mm | 测量方式 | Metric |
| Cutting Direction (HAND) | Right Hand | 单位 | M |
| Master Insert Identification (MIID) | CNMX 1207, CNMG 1204 |
产品特性
| 系列描述 | Lever lock tools with bottom inlets for high-pressure coolant channels carrying CNMX/CNMG 80° rhombic inserts. The tools were designed to be clamped in VDI and CAMFIX shanks with bottom coolant-fed toolholders. | 系列名称 | PCLNR/L-X-JHP-MC |
| 备注 | Supplied with TCX 3 seat for CNMX 0906.. inserts and TCN 323 seat for CNMG 0904.. inserts. TCX 4 seat for CNMX 1207.. inserts and TCN 443 seat for CNMG 1204.. inserts. For more details, click on More Info | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
0.6780
名字
General Indexable Turning Tools
系列名称
PCLNR/L-X-JHP-MC
品牌
Iscar
