PTGNL 2020X-16X-JHP-MC

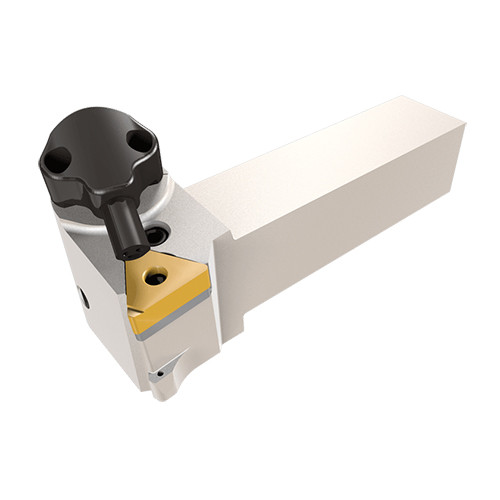

Lever lock tools with bottom inlets for high-pressure coolant channels, carrying the HELITURN LD TNMX and TNMG Triangular inserts. The tools were designed to be clamped in VDI and CAMFIX shanks with bottom coolant-fed toolholders.
Price: Log in For Price
产品规格

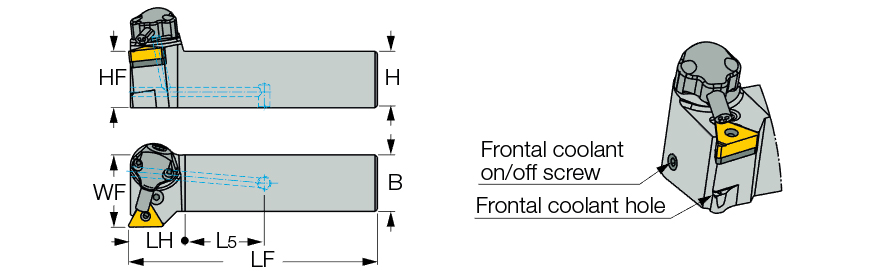

| Shank Height (H) | 20 mm | 应用 | NULL |
| Shank Width (B) | 20 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Functional Length (LF) | 95 mm | Rake Angle Radial (GAMF) | -6 Degrees |
| Head Length (LH) | 25 mm | 刀体材质 | Steel |
| Functional Width (WF) | 25 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 9.52 mm | 测量方式 | Metric |
| Cutting Direction (HAND) | Left Hand | 单位 | M |
| Master Insert Identification (MIID) | TNMX 1606, TNMG 1604 |
产品特性
| 系列描述 | Lever lock tools with bottom inlets for high-pressure coolant channels, carrying the HELITURN LD TNMX and TNMG Triangular inserts. The tools were designed to be clamped in VDI and CAMFIX shanks with bottom coolant-fed toolholders. | 系列名称 | PTGNR/L-X-JHP-MC |
| 备注 | Supplied with TTX 3 seat for TNMX 1606.. inserts and TTN 3 seat for TNMG 1604.. inserts. | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
0.4350
名字
General Indexable Turning Tools
系列名称
PTGNR/L-X-JHP-MC
品牌
Iscar
