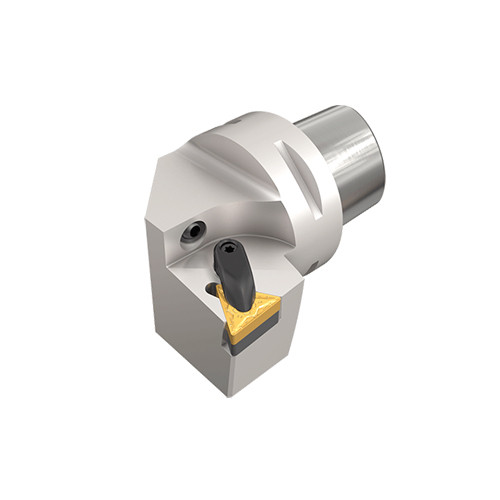

C6 DTGNR-45065-22
91° lead angle R-clamp tools with CAMFIX (ISO 26623-1 standard) exchangeable tapered shanks, carrying negative triangular inserts.
Price: Log in For Price
产品规格

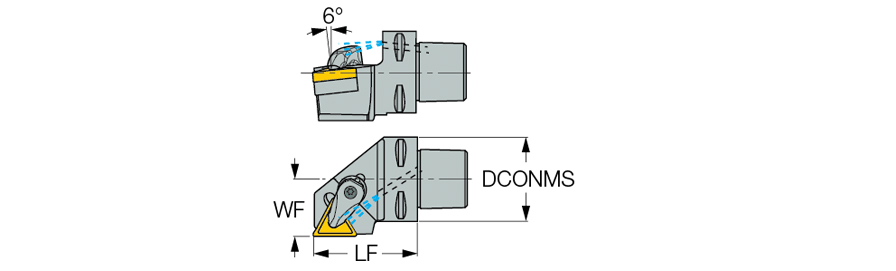

| Overall Length (OAL) | 103 mm | 应用 | NULL |
| Functional Length (LF) | 65 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Functional Width (WF) | 45 mm | Rake Angle Radial (GAMF) | -6 Degrees |
| Connection Diameter Machine Side (DCONMS) | 63 mm | 刀体材质 | Steel |
| Inscribed Circle Diameter (IC) | 12.7 mm | Tool Type | Tapered Shank Turning Tools |
| Cutting Direction (HAND) | Right Hand | 测量方式 | Metric |
| Master Insert Identification (MIID) | TN.. 22 | 单位 | M |
| Coolant Supply Property (CSP) | Coolant Thru |
产品特性
| 系列描述 | 91° lead angle R-clamp tools with CAMFIX (ISO 26623-1 standard) exchangeable tapered shanks, carrying negative triangular inserts. | 系列名称 | C#-DTGNR/L |
| COO | Israel | 品牌 | Iscar |
Shipping Info
包装重量
1.6170
名字
General Indexable Turning Tools
系列名称
C#-DTGNR/L
品牌
Iscar
