产品规格

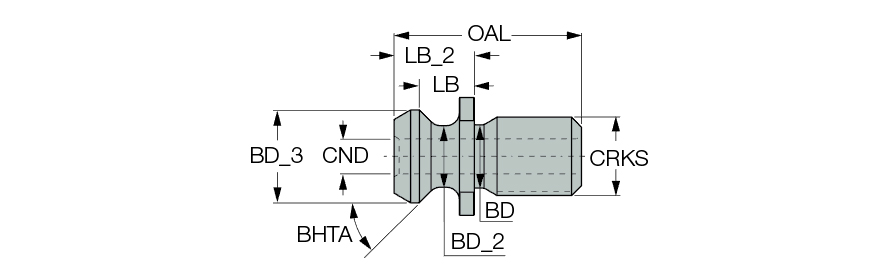

| Shank Size (SS) | 50 | 测量方式 | Inch |
| Body Diameter (BD) | 0.82″ | Tool Type | PS CAT |
| Connection Retention Knob Thread Size (CRKS) | 1-8 | Body Half Taper Angle (BHTA) | 45 Degrees |
| Body Length (LB) | 0.703″ | 刀体材质 | Steel |
| Overall Length (OAL) | 2.3″ | 单位 | I |
| 应用 | | 卡簧 & 其他附件 | |
产品特性
| 系列描述 | CAT Pull Stud ANSI Retention Knobs | 系列名称 | PS CAT-ANSI (Pull Stud) |
| 备注 | Coolant holes only in items with a B suffix | 品牌 | Iscar |
| COO | Italy |
Shipping Info
包装重量
0.5181
名字

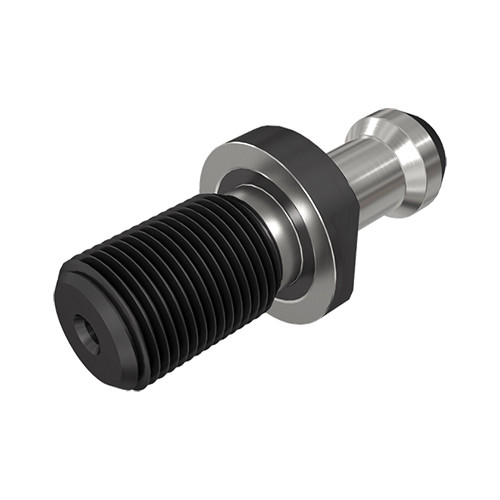

Pull Studs (Retention Knobs)
系列名称
PS CAT-ANSI (Pull Stud)
品牌
Iscar
