产品规格
| Shank Size (SS) | 40 | 测量方式 | Metric |
| Body Diameter (BD) | 17 mm | Tool Type | PS MAZAK |
| Connection Retention Knob Thread Size (CRKS) | M16 | Body Half Taper Angle (BHTA) | 45 Degrees |
| Body Length (LB) | 14.03 mm | 刀体材质 | Steel |
| Overall Length (OAL) | 44.1 mm | 单位 | M |
| 应用 | | 卡簧 & 其他附件 | |
产品特性
| 系列描述 | MAZAK机床用拉钉 BT/ANSI | 系列名称 | PS BT-MAZAK (Pull Stud) |

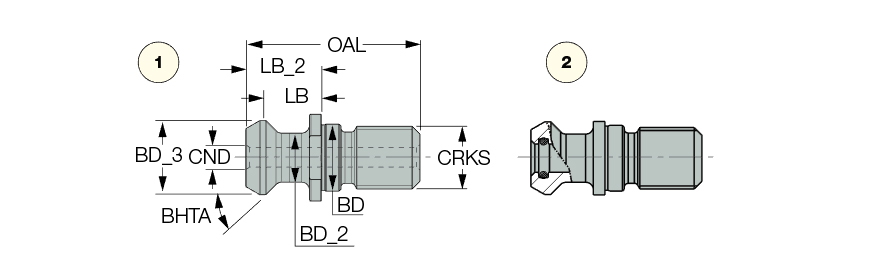

| 备注 | 图1：不带内冷却通孔的拉钉及带后缀‘B’为带内冷却通孔的拉钉 图2：带内冷却通孔及外O-型环 | 品牌 | Iscar |
| COO | Italy |
Shipping Info
包装重量
0.0580
名字

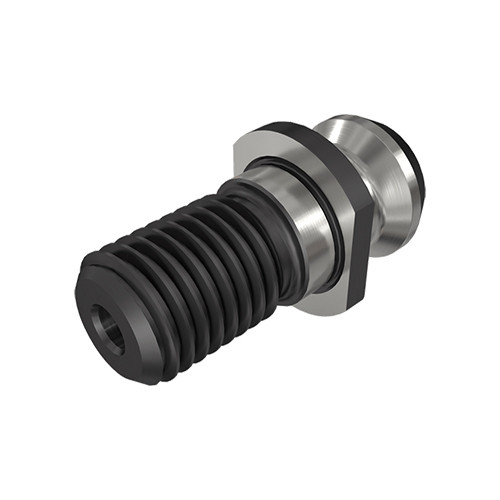

Pull Studs (Retention Knobs)
系列名称
PS BT-MAZAK (Pull Stud)
品牌
Iscar
