产品规格
| 适用材料 | | 钢 | 不锈钢 | 铸铁 | 硬材料 | 高温合金 | | 等级 | IC903 |
| 应用 | | 带斜面或倒角方肩铣削 | 方肩铣 | 螺旋插补铣 | | 切削刃材质 | Carbide |

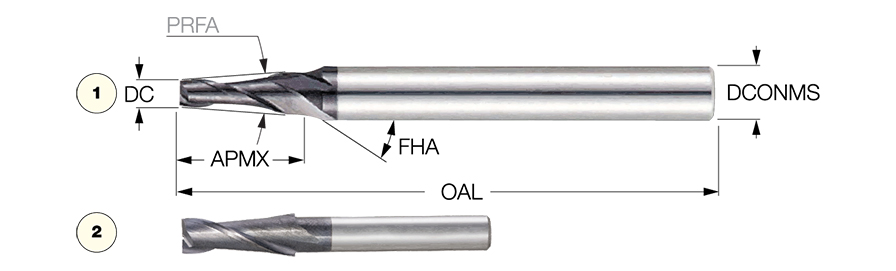

| Cutting Diameter (DC) | 6 mm | 柄部形式 | Round |
| Depth of Cut Maximum (APMX) | 20 mm | 测量方式 | Metric |
| Flute Count (NOF) | 2 | Tool Type | Solid carbide non center cutting endmills 90° |
| Overall Length (OAL) | 60 mm | 刀体材质 | Carbide |
| Flute Helix Angle (FHA) | 30 Degrees | Connection Code Machine Side (CCMS) | Cylindrical |
| Connection Diameter Machine Side (DCONMS) | 6 mm | 单位 | M |
| 涂层 | AlTiN |
产品特性
| 系列描述 | 2刃，30°螺旋角整硬铣刀，用于硬钢加工 | 系列名称 | ECT-A2 |
| COO | Korea | 品牌 | Iscar |
Shipping Info
包装重量
0.0270
名字

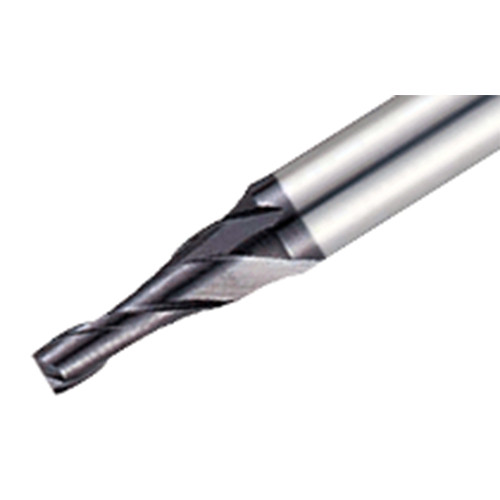

Tapered End Mills
系列名称
ECT-A2
品牌
Iscar
