产品规格

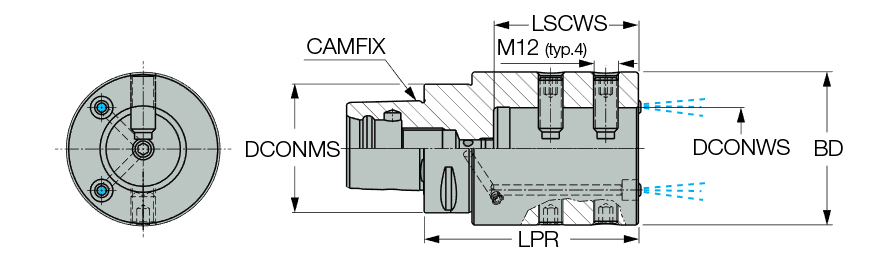

| Protruding Length (LPR) | 100 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Machine Side (DCONMS) | 63 mm | 刀体材质 | Steel |
| Connection Diameter Workpiece Side (DCONWS) | 25 mm | 测量方式 | Metric |
| Overall Length (OAL) | 138 mm | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Shank Size (SS) | 63 | 单位 | M |
| Body Diameter (BD) | 63 mm |
产品特性

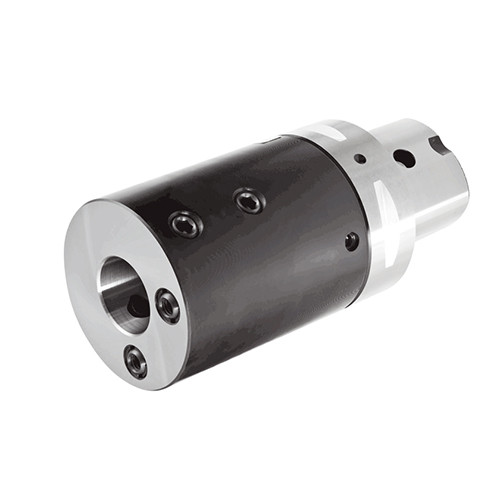

| 系列描述 | Adapters with CAMFIX (ISO 26623-1 standard) exchangeable shanks for boring bars with reduction sleeves. | 系列名称 | C#-ABB |
| COO | Israel | 品牌 | Iscar |
Shipping Info
包装重量
2.4400
名字
Holders
系列名称
C#-ABB
品牌
Iscar
