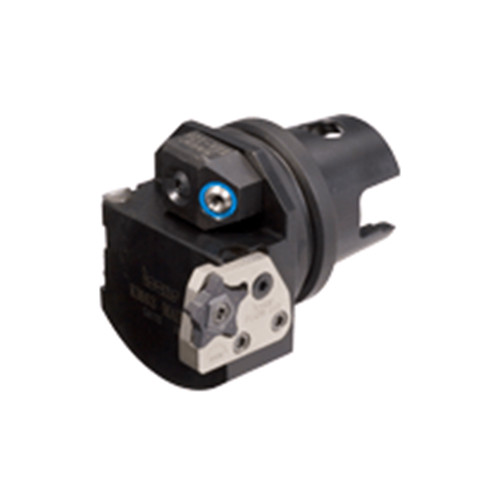

IM40 MAHD
Holders with an ISO 26622-1(*) tapered shank for MODULAR-GRIP, parting, grooving, turning and facing adapters.
Price: Log in For Price
产品规格

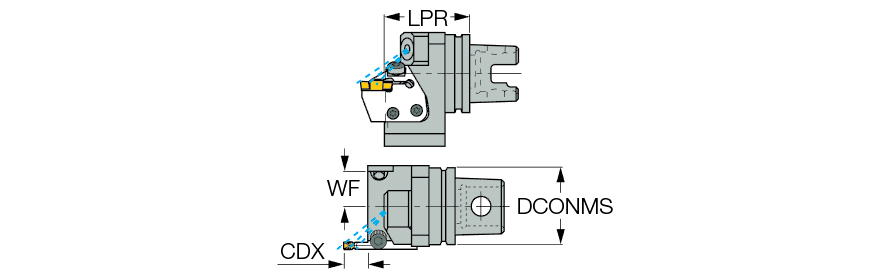

| Protruding Length (LPR) | 43 mm | 测量方式 | Metric |
| Connection Diameter Machine Side (DCONMS) | 40 mm | 刀体材质 | Steel |
| Functional Width (WF) | 18 mm | Overall Length (OAL) | 68 mm |
| Shank Size (SS) | 40 | 单位 | M |

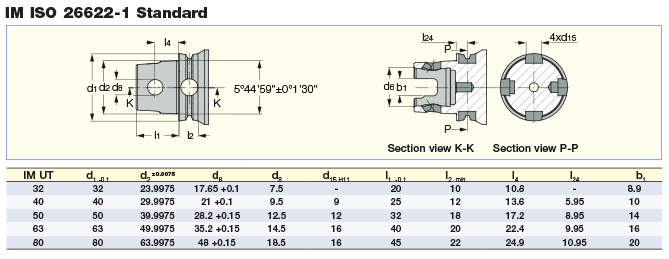

| Tool Type | ISO 26622-1 (KM, IM) |
产品特性
| 系列描述 | Holders with an ISO 26622-1(*) tapered shank for MODULAR-GRIP, parting, grooving, turning and facing adapters. | 系列名称 | IM-MAHD |
| 备注 | (*) Tools with orientation holes in the flange groove can be supplied on request | 品牌 | Iscar |
| COO | Israel |
Shipping Info
包装重量
0.8220
名字
Adapters
系列名称
IM-MAHD
品牌
Iscar
Related Documentation
SR14-519 is screw for DGAD, HGAD and PCADR/L adapters. Supplied in the attached plastic bag. SR M6X20-XT is screw for CGPAD, HGPAD, TGPAD and FGPAD adapters. Supplied with the tool in the attached plastic bag. Used to prevent chips from entering the upper locking screw hole when it is not used for the adaptation.
